Product Details:
|
| Panel Size :: | 30.0 Inch | Resolution :: | 2560(RGB)×1600 , WQXGA |
|---|---|---|---|
| Active Area :: | 641.28×400.8 Mm | Surface :: | Antiglare (Haze 44%), Hard Coating (3H) |
| Display Colors :: | 16.7M (8-bit) , CIE1931 100% | Response Time :: | 12 (Typ.)(Tr+Td); 6 (Typ.)(G To G) |
| High Light: | samsung lcd panel replacement,samsung lcd display panel |
||

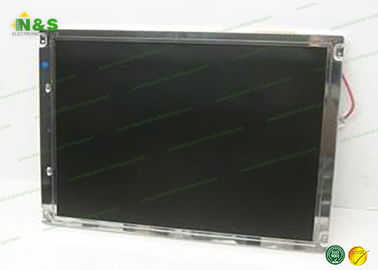

30.0 Inch LTM300M1 - P02 Samsung LCD Panel 2560×1600 Normally Black 60Hz
Company Strength:
1>ISO9001 certificated.
2> Competitive Price and Short Lead-time
3> Professional Team with Rich Experiences in LCD Screen International trade.
4> Small MOQ Support & Fast Response to Customers
5> Long Product Life Time
6> Each LCD will be tested pcs by pcs before shipment to guarantee the quality.
7> We are distributor for the hard-to-find LCD Screen Panels, contained but not limited to Medical LCD Panel, Aerospace LCD Display, Gaming LCD Screen, Military LCD Replacements, Kiosk LCD Panels, Transportation LCD Panels.
8> The LCD brands we can provide to you contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more.
Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 12 months warranty for each LCD screen panel, depend on the different LCD panel models.
(3) We will do our best to solve any possible problems for your after sale sevice. Please contact with us if any problems.
LTM300M1-P02 Information
| Panel Size : | 30.0 inch |
|---|---|
| Dot Resolution : | 2560(RGB)×1600 (WQXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 101 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0835×0.2505 mm (H×V) |
| Pixel Pitch : | 0.2505×0.2505 mm (H×V) |
| Weight : | 4.90Kgs (Max.) |
| Surface : | Antiglare (Haze 44%), Hard coating (3H) |
| Active Area : | 641.28×400.8 mm (H×V) |
| Bezel Area : | 646.3×405.8 mm (H×V) |
| Outline Dimension : | 677.3×436.8 mm (H×V) |
| Outline Depth : | 42.3 (Max.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
LTM300M1-P02 Information
| Lamp Position : | Direct light type | |||||
|---|---|---|---|---|---|---|
| Lamp Type : | CCFL | |||||
| Lamp Amount : | 16 pcs | |||||
| Lamp Shape : | Straight | |||||
| Lamp Life Time : | 30K(Min.) (Hours) | |||||
| Interface Type : | Connector | |||||
| Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | S14B-PHA-SM-TB | 2.0 mm | 14 pins | 1 pcs | ||
| Lamp Driver Board : | Embedded (Inverter) | |||||
| Lamp Driver Board : | 24.0V (Typ.) | |||||
| Lamp Driver Board : | 3.5A (Typ.) | |||||
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AMS477GV11 | Samsung | 4.8" | 720×1280 |
| AMS477GV07 | Samsung | 4.8" | 720×1280 |
| AMS429QC12 | Samsung | 4.3" | 540×960 |
| AMS465GS53 | Samsung | 4.7" | 720×1280 |
| AMS470GS16-1 | Samsung | 4.7" | 720×1280 |
| AMS367PE10 | Samsung | 3.7" | 480×800 |
| AMS397GE61-1 | Samsung | 4.0" | 480×800 |
