Product Details:
|
| Panel Size :: | 27.0 Inch | Resolution :: | 2560(RGB)×1440 , Quad-HD |
|---|---|---|---|
| Active Area :: | 596.736×335.664 Mm | Outline :: | 630×368.2×16.1 Mm |
| Surface :: | Antiglare (Haze 42%), Hard Coating (3H) | Brightness :: | 300 Cd/m² (Typ.) |
| High Light: | samsung lcd screen,samsung lcd panel replacement |
||

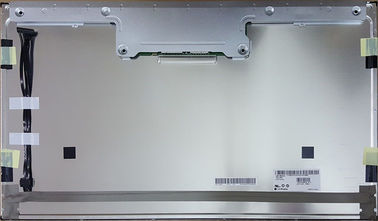

LTM270DL02 Samsung 27.0 inch LCM 2560×1440 with 596.736×335.664 mm
LTM270DL02 Specification
| Panel Size : | 27.0 inch |
|---|---|
| Dot Resolution : | 2560(RGB)×1440 (Quad-HD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 108 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0777×0.2331 mm (H×V) |
| Pixel Pitch : | 0.2331×0.2331 mm (H×V) |
| Weight : | 3.20Kgs (Max.) |
| Surface : | Antiglare (Haze 42%), Hard coating (3H) |
| Active Area : | 596.736×335.664 mm (H×V) |
| Bezel Area : | 601.7×340.7 mm (H×V) |
| Outline Dimension : | 630×368.2 mm (H×V) |
| Outline Depth : | 13.6/16.1 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
LTM270DL02 Specification
| Lamp Position : | Edge light type (Bottom side) | |||||
|---|---|---|---|---|---|---|
| Lamp Type : | WLED | |||||
| Lamp Amount : | 16S4P | |||||
| Lamp Shape : | 4 strings | |||||
| Lamp Life Time : | 30K(Min.) (Hours) | |||||
| Lamp Voltage : | 66/70V (Typ./Max.) | |||||
| Lamp Current : | 440/480mA (Typ./Max.) | |||||
| Lamps Power Consumption : | 25.34W (Typ.) | |||||
| Interface Type : | Connector | |||||
| Interface Position : | ||||||
| Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| molex | 104078-0610 | 1.25 mm | 6 pins | 1 pcs | BLE-6PINS-CCAACC | |
| Lamp Driver Board : | No | |||||
