Product Details:
|
| Panel Size :: | 24.0 Inch | Resolution :: | 1920(RGB)×1200 , WUXGA |
|---|---|---|---|
| Outline :: | 546.4×352×36.3 Mm | Brightness :: | 400 Cd/m² (Typ.) |
| Viewing Angle :: | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) | Signal Interface :: | LVDS (2 Ch, 8-bit) , 30 Pins |
| High Light: | samsung lcd panel replacement,samsung lcd display panel |
||

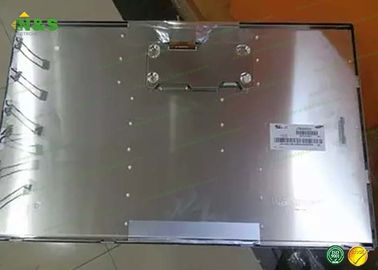

LTM240CT03 Samsung 24.0 inch Normally Whitewith 518.4×324 mm Active Area 60Hz
LTM240CT03 Specification
| Panel Size : | 24.0 inch |
|---|---|
| Dot Resolution : | 1920(RGB)×1200 (WUXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 94 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.090×0.270 mm (H×V) |
| Pixel Pitch : | 0.270×0.270 mm (H×V) |
| Weight : | 3.40Kgs (Max.) |
| Surface : | Antiglare (Haze 25%), Hard coating (3H), Antireflection |
| Active Area : | 518.4×324 mm (H×V) |
| Bezel Area : | 522.4×328.0 mm (H×V) |
| Outline Dimension : | 546.4×352 mm (H×V) |
| Outline Depth : | 29.0/36.3 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
|---|---|
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (6-bit + Hi-FRC) |
| Color Gamut : | 92% NTSC (CIE1931) |
| Response Time : | 5 (Typ.)(Tr+Td) |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.33 (Max.)(9 points) |
| Sunlight Readable : | N |
Our Services
Payment:
(1) Bank transfer , Western Union , T/T, Paypal are accepted.
(2) If any problem of payment, you can contact with us.
Shipment:
(1) Worldwide shipping. Any delivery way you want to choose, please contact us.
(2) All our LCD display will be shipped within1-3 days after confirmed full payment. Please inform us the price you want to mark on the invoice for the LCD screens.
(3) Please make sure your address is correct and deliverable by Express you choose. Your full name is recommended, especially Russian buyers.
(4) Delivery time is approximate:
------Via DHL, Fedex, UPS: 3-7working days
------Via EMS:7-15 working days
------Via Direct Express Line:1-3 working days.
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AMS497QH05 | Samsung | 5.0" | 720×1280 |
| AMS465GS52 | Samsung | 4.7" | 720×1280 |
| AMS465GS51 | Samsung | 4.7" | 720×1280 |
| AMS465GS47 | Samsung | 4.7" | 720×1280 |
| AMS477GV11 | Samsung | 4.8" | 720×1280 |
| AMS499QP59 | Samsung | 5.0" | 1080×1920 |
| AMS499QP53 | Samsung | 5.0" | 1080×1920 |
| AMS499QP07 | Samsung | 5.0" | 1080×1920 |
