Product Details:
|
| Panel Size :: | 24.0 Inch | Resolution :: | 1920(RGB)×1200 , WUXGA |
|---|---|---|---|
| Display Colors :: | 16.7M (6-bit + Hi-FRC) , CIE1931 72% | Viewing Angle :: | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| High Light: | samsung lcd screen,samsung lcd panel replacement |
||

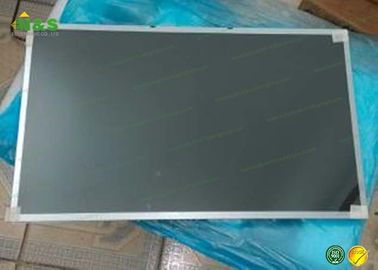

LTM240CL04 Samsung 24.0 inch 518.4×324 mm for Desktop Monitor panel
LTM240CL04 Information
| Panel Size : | 24.0 inch |
|---|---|
| Dot Resolution : | 1920(RGB)×1200 (WUXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 94 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.090×0.270 mm (H×V) |
| Pixel Pitch : | 0.270×0.270 mm (H×V) |
| Weight : | 2.80Kgs (Max.) |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : | 518.4×324 mm (H×V) |
| Bezel Area : | 522.6×328.2 mm (H×V) |
| Outline Dimension : | 546.4×350 mm (H×V) |
| Outline Depth : | 11.2 (Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
LTM240CL04 Information
| Lamp Position : | Edge light type (Right side) | |||||
|---|---|---|---|---|---|---|
| Lamp Type : | WLED | |||||
| Lamp Amount : | 13S3P | |||||
| Lamp Shape : | 3 strings | |||||
| Lamp Life Time : | 40K(Min.) (Hours) | |||||
| Lamp Voltage : | 39.65V (Typ.) | |||||
| Lamp Current : | 360/390mA (Typ./Max.) | |||||
| Lamps Power Consumption : | 14.28W (Typ.) | |||||
| Interface Type : | Connector | |||||
| Interface Position : | ||||||
| Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| molex | 104086-0410 | 1.25 mm | 4 pins | 1 pcs | BLE-4PINS-ACCC | |
| Lamp Driver Board : | No | |||||
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
Warranty:
1. All panels’ grade is promised strictly same as original factory’s standard.
2. All brand-new Panels’ electronic functions are guarranted during warranty period of 1 year beginning with the invoice date.
3. We own 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
4. ISO 9001 guarantee.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| SDC 1.63 320×320 | Samsung | 1.63" | 320×320 |
| AMS499QP07 | Samsung | 5.0" | 1080×1920 |
| AMS499QP01 | Samsung | 5.0" | 1080×1920 |
| AMS568AT01 | Samsung | 5.7" | 1440×2560 |
| AMS840CS04 | Samsung | 8.4" | 1600×2560 |
| AMS520BQ04-0 | Samsung | 5.2" | 1080×1920 |
| AMS309PW01-0 | Samsung | 3.1" | 720×720 |
| AMS465GS45 | Samsung | 4.7" | 720×1280 |
