Product Details:
|
| Panel Size :: | 23.0 Inch | Active Area :: | 509.76×286.74 Mm |
|---|---|---|---|
| Outline :: | 534×311.7 Mm | Display Colors :: | 16.7M (6-bit + Hi-FRC) , CIE1931 72% |
| High Light: | samsung lcd screen,samsung lcd panel replacement |
||

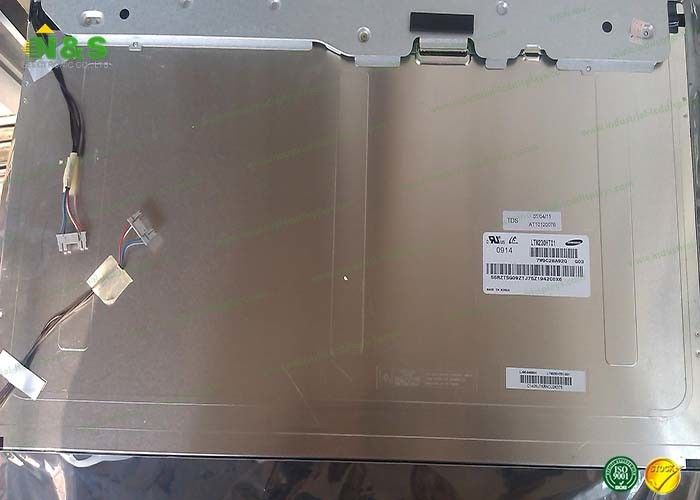

LTM230HP01 Samsung 23.0 inch with Normally Black a-Si TFT-LCD
LTM230HP01 Information
| Panel Size : | 23.0 inch |
|---|---|
| Dot Resolution : | 1920(RGB)×1080 (FHD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 95 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0885×0.2655 mm (H×V) |
| Pixel Pitch : | 0.2655×0.2655 mm (H×V) |
| Weight : | 3.00Kgs (Max.) |
| Surface : | Antiglare (Haze 44%), Hard coating (3H) |
| Active Area : | 509.76×286.74 mm (H×V) |
| Bezel Area : | 513.8×290.8 mm (H×V) |
| Outline Dimension : | 534×311.7 mm (H×V) |
| Outline Depth : | 18.9 (Max.) mm |
| Holes & Brackets : | Side mounting holes |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Our service
1. Agent Brand:
* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;
2. Quality to be guaranteed:
* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;
3. Quickly delivery:
* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.
4. long-term partner:
* Products are sold to more than 20 countries.
5. Super After-Sale service:
* One year warranty .
6. The best TFT LCD solution:
*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AMS465GS01 | Samsung | 4.7" | 720×1280 |
| AMS529HA01 | Samsung | 5.3" | 800×1280 |
| AMS397GE02 | Samsung | 4.0" | 480×800 |
| AMS427GL03 | Samsung | 4.3" | 480×800 |
| AMS395GB01 | Samsung | 4.0" | 360×640 |
| AMS395GB02 | Samsung | 4.0" | 360×640 |
| AMS353FD09-0 | Samsung | 3.5" | 480×800 |
| AMS369FG06-0 | Samsung | 3.7" | 480×800 |
| LSC550FN19-W | Samsung | 55" | 3840×2160 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
LTM230HP01 Information
| Lamp Position : | Edge light type (Top and Bottom) | |||||
|---|---|---|---|---|---|---|
| Lamp Type : | CCFL | |||||
| Lamp Amount : | 4 pcs | |||||
| Lamp Shape : | Straight | |||||
| Lamp Life Time : | 50K(Min.) (Hours) | |||||
| Lamp Voltage : | 750/840/890V (Min./Typ./Max.) | |||||
| Lamp Current : | 3.0/6.5/8.0mA (Min./Typ./Max.) | |||||
| Lamp Operating Frequency : | 40/60/80KHz (Min./Typ./Max.) | |||||
| Lamp Startup Voltage : | 1400/1700V (Max.)(Ta=+25/0℃) | |||||
| Interface Type : | Connector | |||||
| Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHSR-02VS-1 | 3.5 mm | 2 pins | 4 pcs | BLL-2PINS-HL | |
| Lamp Driver Board : | No | |||||
