Product Details:
|
| Panel Size :: | 23.0 Inch | Active Area :: | 509.184×286.416 Mm |
|---|---|---|---|
| Contrast Ratio :: | 1000:1 (Typ.) | Viewing Angle :: | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Response Time :: | 12 (Typ.)(G To G) | Input Voltage :: | 5.0V (Typ.) |
| High Light: | samsung lcd screen,samsung lcd panel replacement |
||

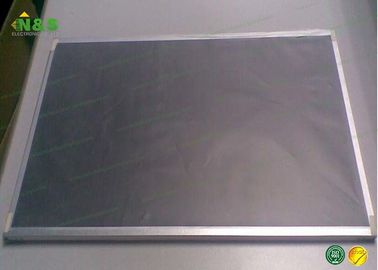

23.0 inch LTM230HL06-V01 Samsung Normally Black 1920×1080 509.184×286.416 mm
LTM230HL06-V01 Information
| Panel Size : | 23.0 inch |
|---|---|
| Dot Resolution : | 1920(RGB)×1080 (FHD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 95 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0884×0.2652 mm (H×V) |
| Pixel Pitch : | 0.2652×0.2652 mm (H×V) |
| Weight : | 2.30Kgs (Max.) |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : | 509.184×286.416 mm (H×V) |
| Bezel Area : | 513.8×291.0 mm (H×V) |
| Outline Dimension : | 534×311.7 mm (H×V) |
| Outline Depth : | 11.0 (Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 12 months warranty for each LCD screen panel, depend on the different LCD panel models.
(3) We will do our best to solve any possible problems for your after sale sevice. Please contact with us if any problems.
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
LTM230HL06-V01 Information
| Lamp Position : | Edge light type (Right side) | |||||
|---|---|---|---|---|---|---|
| Lamp Type : | WLED | |||||
| Lamp Amount : | 11S3P | |||||
| Lamp Shape : | 3 strings | |||||
| Lamp Life Time : | 40K(Min.) (Hours) | |||||
| Lamp Voltage : | 34.0/37.0V (Typ./Max.) | |||||
| Lamp Current : | 360/390mA (Typ./Max.) | |||||
| Lamps Power Consumption : | 12.24W (Typ.) | |||||
| Interface Type : | Connector | |||||
| Interface Position : | ||||||
| Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| molex | 104086-0410 | 1.25 mm | 4 pins | 1 pcs | BLE-4PINS-ACCC | |
| Lamp Driver Board : | No | |||||
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AMS427GL45-0 | Samsung | 4.3" | 480×800 |
| AMS767KC04-1 | Samsung | 7.7" | 1280×800 |
| AMS395GB04 | Samsung | 4.0" | 360×640 |
| AMS410GC01-0 | Samsung | 4.1" | 480×800 |
| AMS370FG | Samsung | 3.7" | 480×800 |
| AMS465GS16-1 | Samsung | 4.7" | 720×1280 |
| AMS427GL34-1 | Samsung | 4.3" | 480×800 |
| AMS767KC06 | Samsung | 7.7" | 1280×800 |
