Product Details:
|
| Panel Size :: | 22.0 Inch | Resolution :: | 1680(RGB)×1050 , WSXGA+ |
|---|---|---|---|
| Active Area :: | 473.76×296.1 Mm | Outline :: | 493.7×320.1×17 Mm |
| Surface :: | Antiglare, Hard Coating (2H) | Brightness :: | 400 Cd/m² (Typ.) |
| High Light: | samsung lcd screen,samsung lcd panel replacement |
||

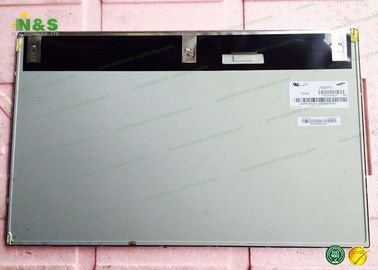

22.0 inch LTM220M1-L02 Samsung with 473.76×296.1 mm 1000:1 16.7M Active Area
LTM220M1-L02 DETAIL
| Panel Size : | 22.0 inch |
|---|---|
| Dot Resolution : | 1680(RGB)×1050 (WSXGA+) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 90 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.094×0.282 mm (H×V) |
| Pixel Pitch : | 0.282×0.282 mm (H×V) |
| Weight : | 2.80Kgs (Max.) |
| Surface : | Antiglare, Hard coating (2H) |
| Active Area : | 473.76×296.1 mm (H×V) |
| Bezel Area : | 477.7×300.1 mm (H×V) |
| Outline Dimension : | 493.7×320.1 mm (H×V) |
| Outline Depth : | 17.0 (Max.) mm |
| Holes & Brackets : | Side mounting holes (8-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
LTM220M1-L02 DETAIL
| Lamp Position : | Edge light type (Top and Bottom) | |||||
|---|---|---|---|---|---|---|
| Lamp Type : | CCFL | |||||
| Lamp Amount : | 4 pcs | |||||
| Lamp Shape : | Straight | |||||
| Lamp Life Time : | 50K(Min.) (Hours) | |||||
| Lamp Voltage : | 750/760/870V (Min./Typ./Max.) | |||||
| Lamp Current : | 4.0/7.5/8.0mA (Min./Typ./Max.) | |||||
| Lamp Operating Frequency : | 40/60KHz (Min./Max.) | |||||
| Lamp Startup Voltage : | 1400/2050V (Max.)(Ta=+25/0℃) | |||||
| Interface Type : | Connector | |||||
| Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| YEONHO | 35001HS-02L | 3.5 mm | 2 pins | 4 pcs | BLL-2PINS-HL | |
| Lamp Driver Board : | No | |||||
Our Service
1. Small quantity also can be provided.
2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. Warranty promise
5. Sourcing line for different hard disks for different brands.
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AMS477GV11 | Samsung | 4.8" | 720×1280 |
| AMS477GV07 | Samsung | 4.8" | 720×1280 |
| AMS429QC12 | Samsung | 4.3" | 540×960 |
| AMS465GS53 | Samsung | 4.7" | 720×1280 |
| AMS470GS16-1 | Samsung | 4.7" | 720×1280 |
| AMS367PE10 | Samsung | 3.7" | 480×800 |
| AMS397GE61-1 | Samsung | 4.0" | 480×800 |
