Product Details:
|
| Panel Size :: | 21.5 Inch | Resolution :: | 1920(RGB)×1080 , FHD |
|---|---|---|---|
| Active Area :: | 476.64×268.11 Mm | Outline :: | 495.6×292.2×17.5 Mm |
| Contrast Ratio :: | 1000:1 (Typ.) | Response Time :: | 5 (Typ.)(Tr+Td) |
| High Light: | samsung lcd panel replacement,samsung lcd display panel |
||

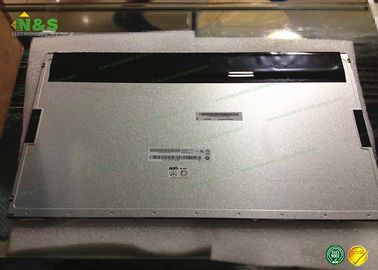

Normally White 21.5 inch LTM215HT01 Samsung for Desktop Monitor panel
LTM215HT01 DETAIL
| Panel Size : | 21.5 inch |
|---|---|
| Dot Resolution : | 1920(RGB)×1080 (FHD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 102 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.08275×0.24825 mm (H×V) |
| Pixel Pitch : | 0.24825×0.24825 mm (H×V) |
| Weight : | 2.25Kgs (Max.) |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : | 476.64×268.11 mm (H×V) |
| Bezel Area : | 479.8×271.3 mm (H×V) |
| Outline Dimension : | 495.6×292.2 mm (H×V) |
| Outline Depth : | 17.5 (Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : |
Without |
| Display Mode : | TN, Normally White, Transmissive |
|---|---|
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Color Gamut : | 72% NTSC (CIE1931) |
| Response Time : | 5 (Typ.)(Tr+Td) |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.25/1.43 (Typ./Max.)(9 points) |
| Sunlight Readable : | N |
Our Company Strength in LCD Screen Sourcing:
1. ISO9001 certificated, Factory Direct Supplied
2. Competitive Price and Short Lead-time
3. Professional Team with Rich Experiences in LCD screen international trade communication.
4. Small MOQ Support & Fast Response to Customers
5. Long Product Life Time
6. 1 Year warranty for our LCD screen replacements.
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Competitive price for different brands hard disk.
• Mass stock with the better price.
• Multiple options.
• Warranty service.
• Better team to provide the before-sales, on-sale and after-sale service
• Pls send us message if any hard disk needed.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LSM270HP04 | Samsung | 27.0" | 1920×1080 |
| LSI320HN01 | Samsung | 31.5" | 1920×1080 |
| LSC550HJ12-W | Samsung | 55" | 1920×1080 |
| LSC550FJ07-W | Samsung | 55" | 3840×2160 |
| LSC550FJ04-W | Samsung | 55" | 3840×2160 |
| LSC550FJ03-W | Samsung | 55" | 3840×2160 |
| LSC490HN03-W | Samsung | 49" | 1920×1080 |
| LSC650FJ10-W | Samsung | 65" | 3840×2160 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
LTM215HT01 DETAIL
| Vertical Frequency : | 60Hz |
|---|---|
| Reverse Scan : | No |
