Product Details:
|
| Panel Size :: | 21.3 Inch | Resolution :: | 1600(RGB)×1200 , UXGA |
|---|---|---|---|
| Active Area :: | 432×324 Mm | Outline :: | 483×373.2 Mm |
| Display Colors :: | 16.7M (8-bit) , CIE1931 65% | Response Time :: | 20/15 (Typ.)(Tr/Td) |
| High Light: | samsung lcd panel replacement,samsung lcd display panel |
||

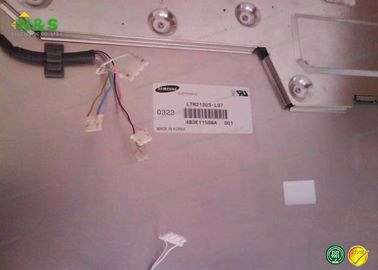

Normally Black LTM213U3-L07 Samsung 21.3 inch 1600×1200 250 for Desktop Monitor
LTM213U3-L07 DETAIL
| Panel Size : | 21.3 inch |
|---|---|
| Dot Resolution : | 1600(RGB)×1200 (UXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 94 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.090×0.270 mm (H×V) |
| Pixel Pitch : | 0.270×0.270 mm (H×V) |
| Weight : | 4.50Kgs (Max.) |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : | 432×324 mm (H×V) |
| Bezel Area : | 436.0×328.0 mm (H×V) |
| Outline Dimension : | 483×373.2 mm (H×V) |
| Outline Depth : | 29.5 (Max.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
LTM213U3-L07 DETAIL
| Lamp Position : | Edge light type (Top and Bottom) | |||||
|---|---|---|---|---|---|---|
| Lamp Type : | CCFL | |||||
| Lamp Amount : | 6 pcs | |||||
| Lamp Shape : | Straight | |||||
| Lamp Replaceable : | Replaceable | |||||
| Lamp Voltage : | 860V (Typ.) | |||||
| Lamp Current : | 6.5mA (Typ.) | |||||
| Interface Type : | Connector | |||||
| Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHR-03VS-1 | 4.0 mm | 3 pins | 4 pcs | BLL-3PINS-HNL | |
| JST | BHR-04VS-1 | 4.0 mm | 4 pins | 2 pcs | BLL-4PINS-HNNL | |
| Lamp Driver Board : | No | |||||
Packing & Delivery for our LCD Screen Panel Replacements:
Our Services
1. Quick and accurate reply with best service attidue to our business
2. Pofessional advise
3. Quick PI confirmation
4. Close production follow up and production process feedback
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LSC550FJ03-W | Samsung | 55" | 3840×2160 |
| LSC490HN03-W | Samsung | 49" | 1920×1080 |
| LSC650FJ10-W | Samsung | 65" | 3840×2160 |
| LSC490HN04-W | Samsung | 49" | 1920×1080 |
| LSC400HM15-W | Samsung | 40" | 1920×1080 |
| LSM315HP02-M01 | Samsung | 31.5" | 1920×1080 |
| LSC750FJ01 | Samsung | 75" | 3840×2160 |
