Product Details:
|
| Panel Size :: | 21.0 Inch | Resolution :: | 1680(RGB)×1050 , WSXGA+ |
|---|---|---|---|
| Active Area :: | 453.6×283.5 Mm | Surface :: | Antiglare (Haze 44%), Hard Coating (3H) |
| High Light: | samsung lcd panel replacement,samsung lcd display panel |
||

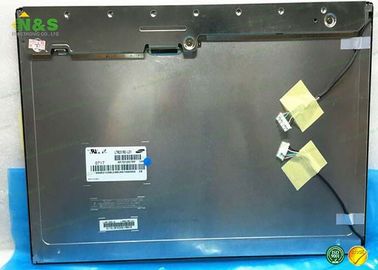

21.0 inch LTM210M2-L02 Samsung with 453.6×283.5 mm Active Area Normally Black
Packaging & Delivery
Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
Can be customize 3.5 inch spare parts auo used lcd panel
Delivery Detail: 1-3 Working Days
LTM210M2-L02 Information
| Panel Size : | 21.0 inch |
|---|---|
| Dot Resolution : | 1680(RGB)×1050 (WSXGA+) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 94 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.090×0.270 mm (H×V) |
| Pixel Pitch : | 0.270×0.270 mm (H×V) |
| Weight : | 3.55Kgs (Max.) |
| Surface : | Antiglare (Haze 44%), Hard coating (3H) |
| Active Area : | 453.6×283.5 mm (H×V) |
| Bezel Area : | 457.6×287.5 mm (H×V) |
| Outline Dimension : | 477.6×307.5 mm (H×V) |
| Outline Depth : | 22.5 (Max.) mm |
| Holes & Brackets : | Side mounting holes (4 pcs) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
LTM210M2-L02 Information
| Lamp Position : | Edge light type (Top and Bottom) | |||||
|---|---|---|---|---|---|---|
| Lamp Type : | CCFL | |||||
| Lamp Amount : | 6 pcs | |||||
| Lamp Shape : | Straight | |||||
| Lamp Life Time : | 50K(Min.) (Hours) | |||||
| Lamp Voltage : | 760V (Typ.) | |||||
| Lamp Current : | 4.0/7.5/8.0mA (Min./Typ./Max.) | |||||
| Lamp Operating Frequency : | 40/60KHz (Min./Max.) | |||||
| Lamp Startup Voltage : | 2360/2950V (Max.)(Ta=+25/0℃) | |||||
| Interface Type : | Connector | |||||
| Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| YEONHO | 35001HS-02L | 3.5 mm | 2 pins | 2 pcs | BLL-2PINS-HL | |
| YEONHO | 20015HS-05LB | 4.0 mm | 5 pins | 2 pcs | BLL-5PINS-HHNLL | |
| Lamp Driver Board : | No | |||||
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AMS353FD09-0 | Samsung | 3.5" | 480×800 |
| AMS369FG06-0 | Samsung | 3.7" | 480×800 |
| LSC550FN19-W | Samsung | 55" | 3840×2160 |
| LSC550FJ13-W | Samsung | 55" | 3840×2160 |
| LSC490FJ02-W | Samsung | 49" | 3840×2160 |
| LSC490FN04-W | Samsung | 49" | 3840×2160 |
| LSM270HP04 | Samsung | 27.0" | 1920×1080 |
| LSI320HN01 | Samsung | 31.5" | 1920×1080 |
| LSC550HJ12-W | Samsung | 55" | 1920×1080 |
