Product Details:
|
| Panel Size :: | 10.1 Inch | Surface :: | Hard Coating (2H) |
|---|---|---|---|
| Brightness :: | 400 Cd/m² (Typ.) | Viewing Angle :: | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| High Light: | samsung lcd panel replacement,samsung lcd display panel |
||

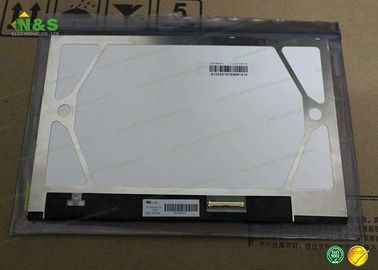

10.1 inch LTL101AL02-T01 Samsung 1280×800 with 216.96×135.6 mm
We can do for You:
1. Quality Guarantee:
100% original new Hard Disk for you.
2．Fast reply:
Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.
3．Delivery Guarantee:
Large Stock System, We have our own warehouses in Shenzhen and Hong Kong, with comprehensive supply lines.
4．After-Sale Service:
Professional support team to provide effective service, we are young and full of passion!
5. Professional acknowledgement of hard disks to provide customers with effective advice.
We have been in hard disk business for more than 6 years and know the main brands' hard disk very well.
6. Competitive quotation:
Our big customer network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.
LTL101AL02-T01 Information
| Panel Size : | 10.1 inch |
|---|---|
| Dot Resolution : | 1280(RGB)×800 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 149 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0565×0.1695 mm (H×V) |
| Pixel Pitch : | 0.1695×0.1695 mm (H×V) |
| Weight : | 131/141g (Typ./Max.) |
| Surface : | Hard coating (2H) |
| Active Area : | 216.96×135.6 mm (H×V) |
| Bezel Area : | 220.8×139.2 mm (H×V) |
| Outline Dimension : | 228.06×148.05 mm (H×V) |
| Outline Depth : | 2.39/4.79 (Typ./Max.) mm |
| Holes & Brackets : | Without |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
LTL101AL02-T01 Information
| Lamp Position : | Edge light type | |||||
|---|---|---|---|---|---|---|
| Lamp Type : | WLED | |||||
| Lamp Amount : | 9S4P | |||||
| Lamp Shape : | 4 strings | |||||
| Lamp Life Time : | 10K(Min.) (Hours) | |||||
| Lamp Voltage : | 27.9V (Typ.) | |||||
| Lamp Current : | 20mA (Typ.) | |||||
| Interface Type : | Included in panel signal interface | |||||
| Lamp Driver Board : | Embedded (LED Driver) | |||||
| Lamp Driver Board : | 7.0/12.0/20.0V (Min./Typ./Max.) | |||||
| Lamp Driver Board : | 2.75W (Max.) | |||||
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AMS499QP59 | Samsung | 5.0" | 1080×1920 |
| AMS499QP53 | Samsung | 5.0" | 1080×1920 |
| AMS499QP07 | Samsung | 5.0" | 1080×1920 |
| AMS499QP01 | Samsung | 5.0" | 1080×1920 |
| AMS568AT01 | Samsung | 5.7" | 1440×2560 |
| AMS840CS04 | Samsung | 8.4" | 1600×2560 |
| AMS520BQ04-0 | Samsung | 5.2" | 1080×1920 |
| AMS309PW01-0 | Samsung | 3.1" | 720×720 |
| AMS465GS45 | Samsung | 4.7" | 720×1280 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange
professional sales team to follow up your case.
