Product Details:
|
| Panel Size :: | 8.9 Inch | Resolution :: | 800(RGB)×1280 , WXGA |
|---|---|---|---|
| Active Area :: | 120×192 Mm | Outline :: | 129.5×202.55×4.19 Mm |
| Surface :: | Glare (Haze 0%) | Viewing Angle :: | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| High Light: | samsung lcd screen,samsung lcd panel replacement |
||

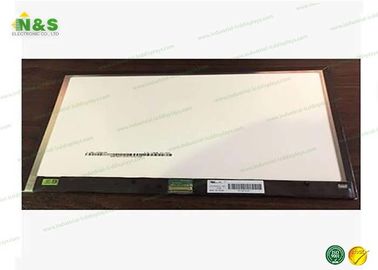

8.9 inch LTL089AL01-001 Samsung Normally Black with 120×192 mm Active Area
LTL089AL01-001 Information
| Panel Size : | 8.9 inch |
|---|---|
| Dot Resolution : | 800(RGB)×1280 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 169 PPI |
| Aspect Ratio : | 10:16 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.050×0.150 mm (H×V) |
| Pixel Pitch : | 0.150×0.150 mm (H×V) |
| Weight : | 93/99g (Typ./Max.) |
| Surface : | Glare (Haze 0%) |
| Active Area : | 120×192 mm (H×V) |
| Bezel Area : | 121.0×193.0 mm (H×V) |
| Outline Dimension : | 129.5×202.55 mm (H×V) |
| Outline Depth : | 2.49/4.19 (Max.) mm |
| Holes & Brackets : | Without |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Without |
LTL089AL01-001 Information
| Display Mode : | PLS, Normally Black, Transmissive |
|---|---|
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 900 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (6-bit + Hi-FRC) |
| Color Gamut : | 55% NTSC (CIE1931) |
| Response Time : | 30 (Typ.)(Tr+Td) |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.302; Wy:0.335 |
| White Variation : | 1.25 (Max.)(9 points) |
| Sunlight Readable : | N |
Our Promise for our LCD Panels:
You will get reply within 24 Hours and:
Year warranty
Day shipping
Return
Our services
1.Your inquiry about our products or the price will be replied within 24 hours!
2.We provide 2 years for warranty and lifelong maintaining ,you will appreciate our warm after-sale service.
3.We will delivery goods as you demand ,you can choose the cheaper and more convenient way!
4.Apart from the Indoor LED Display, Visionled also can offer you LED Pharmacy Cross Display, LED Flexible Display, Outdoor LED Display, LED Gas Price Signs, Indoor/outdoor LED Signs.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AMS353FD09-0 | Samsung | 3.5" | 480×800 |
| AMS369FG06-0 | Samsung | 3.7" | 480×800 |
| LSC550FN19-W | Samsung | 55" | 3840×2160 |
| LSC550FJ13-W | Samsung | 55" | 3840×2160 |
| LSC490FJ02-W | Samsung | 49" | 3840×2160 |
| LSC490FN04-W | Samsung | 49" | 3840×2160 |
| LSM270HP04 | Samsung | 27.0" | 1920×1080 |
| LSI320HN01 | Samsung | 31.5" | 1920×1080 |
