Product Details:
|
| Panel Size :: | 5.0 Inch | Resolution :: | 320(RGB)×240 , QVGA |
|---|---|---|---|
| Active Area :: | 101.76×76.32 Mm | Contrast Ratio :: | 200:1 (Min.) |
| High Light: | samsung lcd screen,samsung lcd display panel |
||

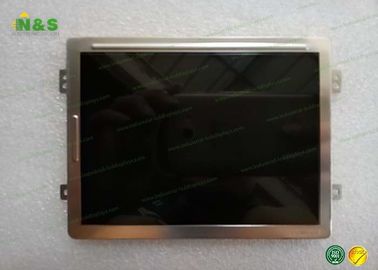

5.0 inch LTG500QV-F03 Samsung Normally White for Pocket TV panel
LTG500QV-F03 Information
| Panel Size : | 5.0 inch |
|---|---|
| Dot Resolution : | 320(RGB)×240 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 79 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.106×0.318 mm (H×V) |
| Pixel Pitch : | 0.318×0.318 mm (H×V) |
| Weight : | 108g (Typ.) |
| Active Area : | 101.76×76.32 mm (H×V) |
| Bezel Area : | 105.5×80.1 mm (H×V) |
| Outline Dimension : | 130.4×93.9 mm (H×V) |
| Outline Depth : | 7.1±0.3 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
LTG500QV-F03 Information
| Lamp Position : | Edge light type (Bottom side) | |||||
|---|---|---|---|---|---|---|
| Lamp Type : | CCFL | |||||
| Lamp Amount : | 1 pcs | |||||
| Lamp Shape : | Straight | |||||
| Lamp Life Time : | 10K(Min.) (Hours) | |||||
| Lamp Voltage : | 675V (Typ.) | |||||
| Lamp Current : | 5.0mA (Typ.) | |||||
| Interface Type : | Connector | |||||
| Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHSR-02VS-1 | 3.5 mm | 2 pins | 1 pcs | BLL-2PINS-HL | |
| Lamp Driver Board : | No | |||||
Company Strength:
1>ISO9001 certificated.
2> Competitive Price and Short Lead-time
3> Professional Team with Rich Experiences in LCD Screen International trade.
4> Small MOQ Support & Fast Response to Customers
5> Long Product Life Time
6> Each LCD will be tested pcs by pcs before shipment to guarantee the quality.
7> We are distributor for the hard-to-find LCD Screen Panels, contained but not limited to Medical LCD Panel, Aerospace LCD Display, Gaming LCD Screen, Military LCD Replacements, Kiosk LCD Panels, Transportation LCD Panels.
8> The LCD brands we can provide to you contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AMS302AK03 | Samsung | 3.0" | 720×480 |
| AMS353FD01-0 | Samsung | 3.5" | 480×800 |
| AMS499QP89-0 | Samsung | 5.0" | 1080×1920 |
| AMS529BY03 | Samsung | 5.3" | 1080×1920 |
| SDC 1.63 320×320 | Samsung | 1.63" | 320×320 |
| AMS499QP42-0 | Samsung | 5.0" | 1080×1920 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
