Product Details:
|
| Panel Type :: | A-Si TFT-LCD , LCM | Panel Size :: | 4.0 Inch |
|---|---|---|---|
| Resolution :: | 480×272(RGB) , WQVGA | Active Area :: | 87.84×49.776 Mm |
| Outline :: | 98.3×62.6 Mm | Brightness :: | 250 Cd/m² (Typ.) |
| High Light: | samsung lcd screen,samsung lcd panel replacement |
||

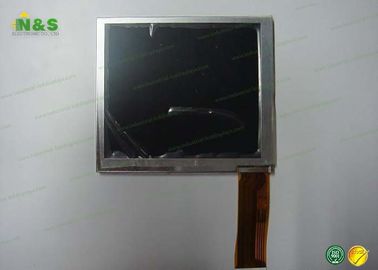

4.0 inch LTE400WQ-F01 Samsung Normally White for Pocket TV panel
LTE400WQ-F01 DETAIL
| Panel Size : | 4.0 inch |
|---|---|
| Dot Resolution : | 480×272(RGB) (WQVGA) |
| Pixel Configuration : | RGB Horizontal Stripe |
| Pixel Density : | 138 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.183×0.061 mm (H×V) |
| Pixel Pitch : | 0.183×0.183 mm (H×V) |
| Weight : | 53/58g (Typ./Max.) |
| Active Area : | 87.84×49.776 mm (H×V) |
| Outline Dimension : | 98.3×62.6 mm (H×V) |
| Outline Depth : | 3.8±0.2 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
LTE400WQ-F01 DETAIL
| Signal Category : | TTL | |||||
|---|---|---|---|---|---|---|
| Signal Class : | Parallel RGB (1 ch, 8-bit) | |||||
| Input Voltage for Panel : | 2.5/3.3V (Typ.)(VDD) | |||||
| Panel Power Consumption : | 80mW (Typ.) | |||||
| Interface Type : | FPC | |||||
| Signal Interface : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| 0.5 mm | 40 pins | 1 pcs | DRGB-40P1C8B-020A | |||
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AMS497QH05 | Samsung | 5.0" | 720×1280 |
| AMS465GS52 | Samsung | 4.7" | 720×1280 |
| AMS465GS51 | Samsung | 4.7" | 720×1280 |
| AMS465GS47 | Samsung | 4.7" | 720×1280 |
| AMS477GV11 | Samsung | 4.8" | 720×1280 |
| AMS499QP59 | Samsung | 5.0" | 1080×1920 |
| AMS499QP53 | Samsung | 5.0" | 1080×1920 |
| AMS499QP07 | Samsung | 5.0" | 1080×1920 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
LTE400WQ-F01 DETAIL
| Amount per Box : | 120 pcs |
|---|---|
| Box Size : | 505×355×312 mm (L×W×H) |
| Box Gross Weight : | 11.2 Kgs |
