Product Details:
|
Panel Size: | 21.5 Inch | Resolution: | 1920(RGB)×1080 , FHD |
---|---|---|---|
Display Mode: | AH-IPS, Normally Black, Transmissive | Signal Interface: | LVDS (2 Ch, 8-bit) , 30 Pins |
High Light: | lg lcd display,lg replacement screen |
Panel Size : | 21.5 inch | |
Dot Resolution : | 1920(RGB)×1080 (FHD) | |
Pixel Configuration : | RGB Vertical Stripe | |
Pixel Density : | 102 PPI | |
Aspect Ratio : | 16:9 (H:V) | |
Form Factor : | Flat Rectangle Display | |
Dot Pitch : | 0.08265×0.24795 mm (H×V) | |
Pixel Pitch : | 0.24795×0.24795 mm (H×V) | |
Weight : | 1.92/2.02Kgs (Typ./Max.) | |
Surface : |
|
|
Active Area : | 476.064×267.786 mm (H×V) | |
Bezel Area : | 479.8×271.3 mm (H×V) | |
Outline Dimension : | 497.6×292.2 mm (H×V) | |
Outline Depth : | 11.0 (Max.) mm | |
Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |
Landscape or Portrait : | Landscape type | |
Touch Panel : | Without |
Display Mode : |
|
|
Brightness : | 250 cd/m² (Typ.) | |
Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) | |
Display Color : | 16.7M (6-bit + Hi-FRC) | |
Response Time : | 14 (Typ.)(G to G) | |
Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) | |
Viewing Direction : | Symmetry | |
White color Chromaticity : | Wx:0.313; Wy:0.329 | |
White Variation : |
|
|
Sunlight Readable : | N |
Our Company Strength in LCD Screen Sourcing:
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
Panel Model | Brand | Size | Resolution |
LH550WF3-SH01 | LG Display | 5.5" | 1080×1920 |
LC320DXY-SHA3 | LG Display | 31.5" | 1366×768 |
LC490EQL-SHA2 | LG Display | 49" | 3840×2160 |
LC430EQL-SHA2 | LG Display | 43" | 3840×2160 |
LC430DUY-SHA2 | LG Display | 43" | 1920×1080 |
LC550EGY-SHM2 | LG Display | 55" | 3840×2160 |
LC320DXJ-SFA9 | LG Display | 31.5" | 1366×768 |
LH400WV3-SD06 | LG Display | 4.0" | 480×800 |
LH300Q02-SD01 | LG Display | 3.0" | 240×320 |
LH500X01-SH01 | LG Display | 5.0" | 768×1024 |
LH500WX1-SH03 | LG Display | 5.0" | 720×1280 |

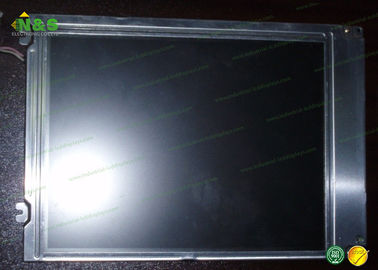

LM215WF3-SLM1 Picture
