Product Details:
|
| Panel Size: | 10.4 Inch | Resolution: | 1024(RGB)×768 , XGA |
|---|---|---|---|
| Display Mode: | AFFS+, Normally Black, Transmissive | Signal Interface: | LVDS (1 Ch, 6-bit) , 30 Pins |
| High Light: | industrial lcd screen,industrial lcd panel |
||
| Panel Size : | 10.4 inch | |
| Dot Resolution : | 1024(RGB)×768 (XGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 123 PPI | |
| Aspect Ratio : | 4:3 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.0685×0.2055 mm (H×V) | |
| Pixel Pitch : | 0.2055×0.2055 mm (H×V) | |
| Weight : |
|
|
| Surface : | Antiglare | |
| Active Area : | 210.432×157.824 mm (H×V) | |
| Outline Dimension : | 238.6×173.2 mm (H×V) | |
| Outline Depth : | 4.0/6.8 (Typ./Max.) mm | |
| Holes & Brackets : | Face mounting holes (8 pcs) on left, right slugs | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
| Display Mode : |
|
|
| Brightness : | 340 cd/m² (Typ.) | |
| Contrast Ratio : | 600 : 1 (Typ.) (Transmissive) | |
| Display Color : | 262K (6-bit) | |
| Color Gamut : | 40% NTSC (CIE1931) | |
| Response Time : | 36 (Typ.)(Tr+Td) | |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) | |
| Viewing Direction : | Symmetry | |
| White color Chromaticity : | Wx:0.313; Wy:0.329 | |
| White Variation : |
|
|
| Sunlight Readable : | N |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| HX7308BTJFA | Himax | 0.45" | 1024×768 |
| HX7027ATGFA | Himax | 0.44" | 640×480 |
| HX7019ATGFA | Himax | 0.38" | 640×360 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Packing & Delivery for our LCD Screen Panel Replacements:
What is Our Advantage?
1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.
2. We can provide the one-stop purchase service.
3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.
4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.
5. Fast delivery.
6. Reasonable price.

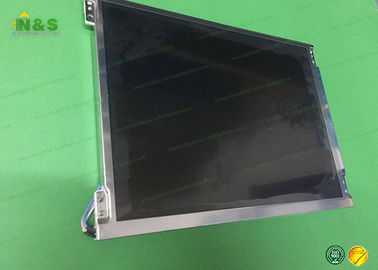

HX104X03-100 Picture
