Product Details:
|
| Panel Size: | 20.8 Inch | Resolution: | 2048(LCR)×1536 , QXGA |
|---|---|---|---|
| Display Mode: | AFFS, Normally Black, Transmissive | Signal Interface: | LVDS (4 Ch, 8-bit) , 70 Pins |
| High Light: | industrial lcd screen,industrial lcd panel |
||
Our Advantages
| Panel Size : | 20.8 inch | |
| Dot Resolution : | 2048(LCR)×1536 (QXGA) | |
| Pixel Configuration : | LCR Vertical Stripe | |
| Pixel Density : | 122 PPI | |
| Aspect Ratio : | 4:3 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.069×0.207 mm (H×V) | |
| Pixel Pitch : | 0.207×0.207 mm (H×V) | |
| Weight : | 2.50Kgs (Typ.) | |
| Surface : |
|
|
| Active Area : | 423.9×318 mm (H×V) | |
| Bezel Area : | 428.0×322.0 mm (H×V) | |
| Outline Dimension : | 457×350 mm (H×V) | |
| Outline Depth : | 45.0 (Typ.) mm | |
| Holes & Brackets : | Side mounting holes (8 pcs) | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| HX7308BTJFA | Himax | 0.45" | 1024×768 |
| HX7027ATGFA | Himax | 0.44" | 640×480 |
| HX7019ATGFA | Himax | 0.38" | 640×360 |
| Display Mode : |
|
|
| Brightness : | 800 cd/m² (Typ.) | |
| Contrast Ratio : | 700 : 1 (Typ.) (Transmissive) | |
| Display Color : | Grayscale (8-bit) | |
| Response Time : | 15/20 (Typ.)(Tr/Td) | |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) | |
| Viewing Direction : | Symmetry | |
| White color Chromaticity : | Wx:0.294; Wy:0.295 | |
| White Variation : |
|
|
| Sunlight Readable : | Y |
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.

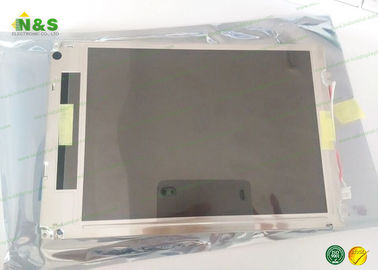

HV208QX1-100 Picture
