Product Details:
|
| Panel Size: | 12.1 Inch | Resolution: | 1024(RGB)×768 , XGA |
|---|---|---|---|
| Display Mode: | TN, Normally White, Transmissive | Signal Interface: | LVDS (1 Ch, 6-bit) , 20 Pins |
| High Light: | industrial touch screen display,industrial lcd panel |
||
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
Packaging & Shipping for Our LCD panel
1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.
Other shipping terms can also be arranged according to specific requirements.
| Panel Size : | 12.1 inch | |
| Dot Resolution : | 1024(RGB)×768 (XGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 105 PPI | |
| Aspect Ratio : | 4:3 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.080×0.240 mm (H×V) | |
| Pixel Pitch : | 0.240×0.240 mm (H×V) | |
| Weight : |
|
|
| Surface : | Antiglare (Haze 25%), Hard coating (3H) | |
| Active Area : | 245.76×184.32 mm (H×V) | |
| Bezel Area : | 251.4×188.9 mm (H×V) | |
| Outline Dimension : | 270×199 mm (H×V) | |
| Outline Depth : | 6.5±0.3 mm | |
| Holes & Brackets : | Face mounting holes (2-Φ2.0, 2-Φ2.2) on left, right slugs | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
| Display Mode : |
|
|
| Brightness : | 150 cd/m² (Typ.) | |
| Contrast Ratio : | 450 : 1 (Typ.) (Transmissive) | |
| Display Color : | 262K (6-bit) | |
| Color Gamut : | 40% NTSC (CIE1931) | |
| Response Time : | 35 (Typ.)(Tr+Td) | |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) | |
| Viewing Direction : | Symmetry | |
| White color Chromaticity : | Wx:0.305; Wy:0.330 | |
| White Variation : |
|
|
| Sunlight Readable : | N |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| HX7308BTJFA | Himax | 0.45" | 1024×768 |
| HX7027ATGFA | Himax | 0.44" | 640×480 |
| HX7019ATGFA | Himax | 0.38" | 640×360 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

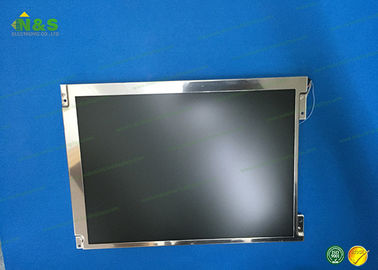

HT12X21-100 Picture
