Product Details:
|
| Panel Size: | 19.0 Inch | Resolution: | 1280(RGB)×1024 , SXGA |
|---|---|---|---|
| Display Mode: | TN, Normally White, Transmissive | Signal Interface: | LVDS (2 Ch, 8-bit) , 30 Pins |
| High Light: | industrial touch screen display,industrial lcd screen |
||
| Panel Size : | 19.0 inch | |
| Dot Resolution : | 1280(RGB)×1024 (SXGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 86 PPI | |
| Aspect Ratio : | 5:4 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.098×0.294 mm (H×V) | |
| Pixel Pitch : | 0.294×0.294 mm (H×V) | |
| Weight : |
|
|
| Surface : | Antiglare, Hard coating (3H) | |
| Active Area : | 376.32×301.056 mm (H×V) | |
| Outline Dimension : | 396×324 mm (H×V) | |
| Outline Depth : | 18.0/18.6 (Typ./Max.) mm | |
| Holes & Brackets : | Side mounting holes (8-M3) on left, right bezel | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
What is Our Advantage?
1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.
2. We can provide the one-stop purchase service.
3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.
4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.
5. Fast delivery.
6. Reasonable price.
| Display Mode : |
|
|
| Brightness : | 270 cd/m² (Typ.) | |
| Contrast Ratio : | 700 : 1 (Typ.) (Transmissive) | |
| Display Color : | 16.2M (6-bit + FRC) | |
| Response Time : | 2/6 (Typ.)(Tr/Td) | |
| Viewing Angle : | 75/75/70/65 (Typ.)(CR≥10) (L/R/U/D) | |
| Viewing Direction : | 6 o'clock | |
| White color Chromaticity : |
|
|
| White Variation : | 1.25/1.33 (Typ./Max.)(9 points) | |
| Sunlight Readable : | N |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| HSD043B8W2-C01 | HannStar | 4.3" | 480×800 |
| HSD070IDW3-A00-0299 | HannStar | 7.0" | 800×480 |
| HSD050F9W1-A00 | HannStar | 5.0" | 480×272 |
| HSD050FDW1-A00 | HannStar | 5.0" | 800×480 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.

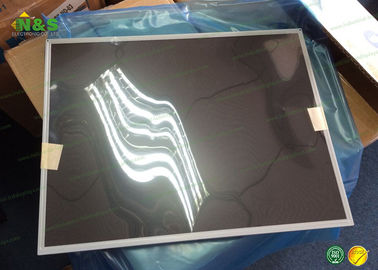

HSD190ME13-A02 Picture
