Product Details:
|
| Panel Size: | 10.1 Inch | Resolution: | 1024(RGB)×600 , WSVGA |
|---|---|---|---|
| Display Mode: | TN, Normally White, Transmissive | Signal Interface: | LVDS (1 Ch, 6-bit) , 30 Pins |
| High Light: | industrial lcd screen,industrial lcd panel |
||
| Panel Size : | 10.1 inch | |
| Dot Resolution : | 1024(RGB)×600 (WSVGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 118 PPI | |
| Aspect Ratio : | 17:10 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.07175×0.21525 mm (H×V) | |
| Pixel Pitch : | 0.21525×0.21525 mm (H×V) | |
| Weight : |
|
|
| Surface : | Glare (Haze 0%), Hard coating (3H) | |
| Active Area : | 220.416×129.15 mm (H×V) | |
| Bezel Area : | 223.42×132.15 mm (H×V) | |
| Outline Dimension : | 235×145.8 mm (H×V) | |
| Outline Depth : | 5.5/5.8 (Typ./Max.) mm | |
| Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
|
|
||
| Brightness : | 250 cd/m² (Typ.) | ||
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) | ||
| Display Color : | 262K (6-bit) | ||
| Response Time : | 5/20 (Typ.)(Tr/Td) | ||
| Viewing Angle : | 45/45/15/35 (Typ.)(CR≥10) (L/R/U/D) | ||
| Viewing Direction : | 6 o'clock | ||
| White color Chromaticity : |
|
||
| White Variation : | 1.43 (Max.)(9 points) | ||
| Sunlight Readable : | N |
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.
Our Advantages
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| HSD020F2N7-A | HannStar | 2.0" | 176×220 |
| HSD019F2N1-A | HannStar | 1.9" | 220×176 |
| HSD018F2N4-A | HannStar | 1.8" | 220×176 |
| HSD070BDW3-A00 | HannStar | 7.0" | 800×480 |
| HSD050B8W2-C10 | HannStar | 5.0" | 480×854 |
| HSD045B8W1-C11 | HannStar | 4.5" | 480×854 |
| HSD045B8W1-B11 | HannStar | 4.5" | 480×854 |
| HSD045B8W1-A11 | HannStar | 4.5" | 480×854 |
| HSD062IDW1-A02-0299 | HannStar | 6.2" | 800×480 |
| HSD060BMW1-A00 | HannStar | 6.0" | 540×960 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

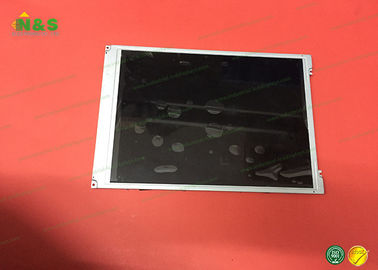

HSD100IFW1-F01 Picture
