Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 5.7 Inch |
|---|---|---|---|
| Resolution: | 320(RGB)×240 , QVGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 115.2×86.4 Mm | Outline: | 131×102.2 Mm |
| High Light: | hitachi lcd display,hitachi lcd screen |
||

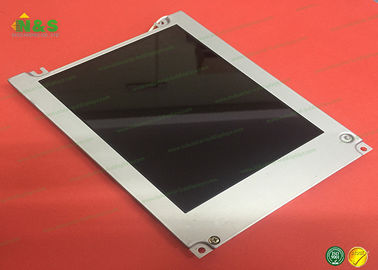

Normally White TX14D12VM1CAB Hitachi LCD Panel 5.7 inch for Industrial Appication panel
Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.
We can do for you:
TX14D12VM1CAB Specification
| Panel Size : | 5.7 inch |
| Dot Resolution : | 320(RGB)×240 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 70 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.120×0.360 mm (H×V) |
| Pixel Pitch : | 0.360×0.360 mm (H×V) |
| Weight : | 200g (Typ.) |
| Surface : | Antiglare |
| Active Area : | 115.2×86.4 mm (H×V) |
| Bezel Area : | 119.4×90.6 mm (H×V) |
| Outline Dimension : | 131×102.2 mm (H×V) |
| Outline Depth : | 12.4±0.5 mm |
| Holes & Brackets : | Rear mounting holes (4-Ф2.4) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Embeded (4-wire Resistive) |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 480 cd/m² (Typ.) |
| Contrast Ratio : | 350 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 45 (Typ.)(Tr+Td) |
| Viewing Angle : | 65/65/70/50 (Typ.)(CR≥5) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.290; Wy:0.290 |
| Sunlight Readable : | N |
Packaging & Shipping:
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| HX7308BTJFA | Himax | 0.45" | 1024×768 |
| HX7027ATGFA | Himax | 0.44" | 640×480 |
| HX7019ATGFA | Himax | 0.38" | 640×360 |
We also have other industrial LCD panels, pls contact to us for the further information.
