Product Details:
|
| Panel Size: | 23.8 Inch | Panel Type: | A-Si TFT-LCD , LCM |
|---|---|---|---|
| Resolution: | 2560(RGB)×1440 , Quad-HD | Display Mode: | AHVA, Normally Black, Transmissive |
| Active Area: | 526.85×296.35 Mm | Outline: | 543×317.4×14 Mm |
| Surface: | Antiglare, Hard Coating (3H) | Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| High Light: | auo display panel,auo lcd display |
||
AUO M238DAN01.0 LCD Panel 23.8 inch Normally Black for Desktop Monitor panel
M238DAN01.0 Detail
| Panel Brand : | AUO |
| Panel Model : | M238DAN01.0 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 23.8 inch |
| Resolution : | 2560(RGB)×1440 , Quad-HD |
| Display Mode : | AHVA, Normally Black, Transmissive |
| Active Area : | 526.85×296.35 mm |
| Outline : | 543×317.4×14 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 1000:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , sRGB |
| Response Time : | 14 (Typ.)(G to G) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 15S4P WLED Without Driver |
| Signal Interface : | LVDS (4 ch, 8-bit) , 92 pins |
| Input Voltage : | 5.0V (Typ.) |
| Panel Size : | 23.8 inch |
| Dot Resolution : | 2560(RGB)×1440 (Quad-HD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 123 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0686×0.2058 mm (H×V) |
| Pixel Pitch : | 0.2058×0.2058 mm (H×V) |
| Weight : | 2.31Kgs (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 526.85×296.35 mm (H×V) |
| Bezel Area : | 530.2×299.6 mm (H×V) |
| Outline Dimension : | 543×317.4 mm (H×V) |
| Outline Depth : | 8.4/14.0 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
The reasons you choose us
1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| M350DVR01.1 CELL | AUO | 35.0" | 2560×1080 |
| T320HVN02.1 CELL | AUO | 31.5" | 1920×1080 |
| M270DAN01.1 CELL | AUO | 27.0" | 2560×1440 |
| T500QVN03.3 CELL | AUO | 50" | 3840×2160 |
| T500QVN03.0 CELL | AUO | 50" | 3840×2160 |
| H497DAN02.1 | AUO | 5.0" | 1080×1920 |
| H546DAN07.3 | AUO | 5.5" | 1080×1920 |
| M270HVN02.3 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.2 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.1 CELL | AUO | 27.0" | 1920×1080 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

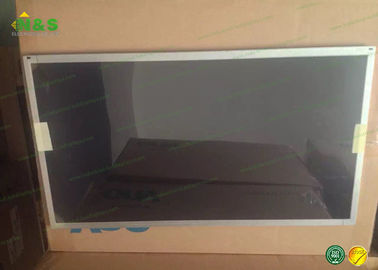

M238DAN01.0 AUO LCD Panel Picture
