Product Details:
|
| Panel Size: | 23.0 Inch | Resolution: | 1920(RGB)×1080 , FHD |
|---|---|---|---|
| Display Mode: | FFS, Normally Black, Transmissive | Signal Interface: | LVDS (2 Ch, 8-bit) , 30 Pins |
| High Light: | industrial lcd screen,industrial lcd panel |
||
| Panel Size : | 23.0 inch | |
| Dot Resolution : | 1920(RGB)×1080 (FHD) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 95 PPI | |
| Aspect Ratio : | 16:9 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.0884×0.2652 mm (H×V) | |
| Pixel Pitch : | 0.2652×0.2652 mm (H×V) | |
| Weight : | 2.35Kgs | |
| Surface : |
|
|
| Active Area : | 509.184×286.416 mm (H×V) | |
| Bezel Area : | 513.0×291.0 mm (H×V) | |
| Outline Dimension : | 533.2×312 mm (H×V) | |
| Outline Depth : | 8.9/11.0 (Typ./Max.) mm | |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
| Display Mode : |
|
|
| Brightness : | 250 cd/m² (Typ.) | |
| Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) | |
| Display Color : | 16.7M (6-bit + Hi-FRC) | |
| Color Gamut : | sRGB | |
| Response Time : | 14 (Typ.)(G to G) | |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) | |
| Viewing Direction : | Symmetry | |
| White color Chromaticity : |
|
|
| White Variation : | 1.33 (Max.)(5 points) | |
| Sunlight Readable : | N |
Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.
We can do for you:
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| MV236FHB-N10 | BOE | 24.0" | 1920×1080 |
| HR270QH3-100 | BOE | 27.0" | 2560×1440 |
| BF045WVQ-401 | BOE | 4.5" | 480×854 |
| BV055HDE-N40 | BOE | 5.5" | 720×1280 |
| TV080WXB-NV0 | BOE | 8.0" | 800×1280 |
| AV080WVB-NW2 | BOE | 8.0" | 800×480 |
| BV050HDE-N47 | BOE | 5.0" | 720×1280 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

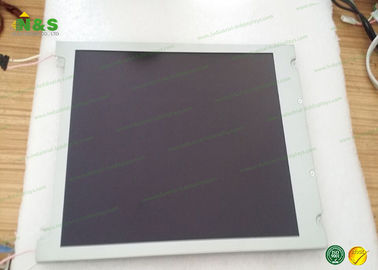

HR230WU1-100 Picture
