Product Details:
|
| Panel Size: | 4.3 Inch | Resolution: | 540(RGB)×960 , QHD |
|---|---|---|---|
| Display Mode: | AHVA, Normally Black, Transmissive | Signal Interface: | MIPI (2 Data Lanes) , 25 Pins |
| High Light: | auo lcd screen,auo lcd display |
||
| Panel Size : | 4.3 inch |
| Dot Resolution : | 540(RGB)×960 (qHD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 256 PPI |
| Aspect Ratio : | 9:16 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.033×0.099 mm (H×V) |
| Pixel Pitch : | 0.099×0.099 mm (H×V) |
| Weight : | TBD |
| Active Area : | 53.46×95.04 mm (H×V) |
| Bezel Area : | 55.06×96.64 mm (H×V) |
| Outline Dimension : | 58.12×105.095 mm (H×V) |
| Outline Depth : | 1.78±0.15 mm |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Without |
| Display Mode : |
| |
| Contrast Ratio : | 700 : 1 (Min.) (Transmissive) | |
| Display Color : | 16.7M (8-bit) | |
| Color Gamut : | 80% NTSC (CIE1931) | |
| Response Time : | 55/55 (Max.)(Tr/Td) | |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) | |
| Viewing Direction : | Symmetry | |
| White color Chromaticity : | Wx:0.310; Wy:0.357 | |
| Transmissivity : | 5.34% (Typ.)(with Polarizer) | |
| Sunlight Readable : | N |
Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.
We can do for you:
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| X139BLB01.0 | AUO | 1.39" | 400×400 |
| H381DLN01.0 | AUO | 3.8" | 1080×1200 |
| H497TLB01.4 | AUO | 5.0" | 720×1280 |
| H163QLN01.0 | AUO | 1.63" | 320×320 |
| H139BLN01.2 | AUO | 1.39" | 400×400 |
| H500TLB01.0 | AUO | 5.0" | 720×1280 |
| X546DLB01.0 | AUO | 5.5" | 1080×1920 |
| H546DLB01.1 | AUO | 5.5" | 1080×1920 |

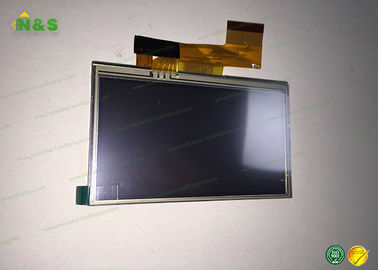

H429AAN01.1 Picture
