Product Details:
|
| Panel Size: | 10.4 Inch | Resolution: | 800(RGB)×600 , SVGA |
|---|---|---|---|
| Display Mode: | TN, Normally White, Transmissive | Signal Interface: | LVDS (1 Ch, 6/8-bit) , 20 Pins |
| High Light: | auo display panel,auo lcd display |
||
| Panel Size : | 10.4 inch | |
| Dot Resolution : | 800(RGB)×600 (SVGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 96 PPI | |
| Aspect Ratio : | 4:3 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.088×0.264 mm (H×V) | |
| Pixel Pitch : | 0.264×0.264 mm (H×V) | |
| Weight : |
|
|
| Surface : | Antiglare, Hard coating (3H) | |
| Active Area : | 211.2×158.4 mm (H×V) | |
| Bezel Area : | 214.8×162.0 mm (H×V) | |
| Outline Dimension : | 236×174.3 mm (H×V) | |
| Outline Depth : | 5.7±0.3 mm | |
| Holes & Brackets : | Face mounting holes (4-Φ2.5, 2-R1.25) on left, right bezel | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
| Display Mode : |
|
|
| Brightness : | 230 cd/m² (Typ.) | |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) | |
| Display Color : | 262K/16.2M (6-bit / 6-bit + FRC) | |
| Color Gamut : | 45% NTSC (CIE1931) | |
| Response Time : | 10/20 (Typ.)(Tr/Td) | |
| Viewing Angle : | 80/80/60/80 (Typ.)(CR≥10) (L/R/U/D) | |
| White color Chromaticity : |
|
|
| White Variation : | 1.33/1.54 (Typ./Max.)(5 points) | |
| Sunlight Readable : | N |
Packaging & Shipping:
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate.
Quality Control:
Make sure No damage, No Scratches, No dusty, No light leakage.
Make sure all functions are 100% tested ok
Below are our other LCD panels stock for your easy reference:
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| H546DAN07.3 | AUO | 5.5" | 1080×1920 |
| M270HVN02.3 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.2 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.1 CELL | AUO | 27.0" | 1920×1080 |
| M270DTN01.0 CELL | AUO | 27.0" | 2560×1440 |
| T320HVN05.7 CELL | AUO | 31.5" | 1920×1080 |
| T320HVN05.4 CELL | AUO | 31.5" | 1920×1080 |
| T215HVN01.2 CELL | AUO | 21.5" | 1920×1080 |
| B070ATN02.0 CELL | AUO | 7.0" | 600×1024 |
| M238DAN01.3 CELL | AUO | 23.8" | 2560×1440 |
| B070AAN01.0 | AUO | 7.0" | 600×1024 |

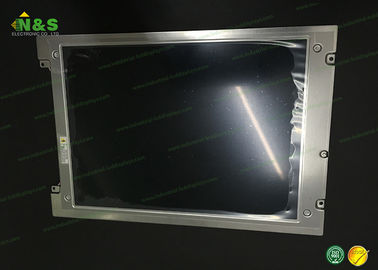

G104SN03 V4 Picture
