Product Details:
|
| Resolution: | 800(RGB)×600 , SVGA | Panel Size: | 12.1 Inch |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 246×184.5 Mm | Outline: | 275×200×8 Mm |
| High Light: | samsung lcd panel replacement,samsung lcd display panel |
||
Antiglare LT121S1-105W 12.1 inch Samsung LCD Pane 246×184.5 mm Active Area
LT121S1-105W Specification
| Panel Size : | 12.1 inch | ||||||||||||||||
| Dot Resolution : | 800(RGB)×600 (SVGA) | ||||||||||||||||
| Pixel Configuration : | RGB Vertical Stripe | ||||||||||||||||
| Pixel Density : | 82 PPI | ||||||||||||||||
| Aspect Ratio : | 4:3 (H:V) | ||||||||||||||||
| Flat Rectangle Display | ||||||||||||||||
| Dot Pitch : | 0.1025×0.3075 mm (H×V) | ||||||||||||||||
| 0.3075×0.3075 mm (H×V) | ||||||||||||||||
| Weight : | 490g (Max.) | ||||||||||||||||
| Antiglare (Haze 25%), Hard coating (3H) | ||||||||||||||||
| Active Area : | 246×184.5 mm (H×V) | ||||||||||||||||
| Bezel Area : | 250.0×188.5 mm (H×V) | ||||||||||||||||
| Outline Dimension : | 275×200 mm (H×V) | ||||||||||||||||
| 8.0 (Max.) mm | ||||||||||||||||
| Holes & Brackets : | Face mounting holes (2-Φ3.4, 2-R1.7) on left, right bezel | ||||||||||||||||
| Landscape or Portrait : | Landscape type | ||||||||||||||||
| Touch Panel : | Without | ||||||||||||||||
| TN, Normally White, Transmissive | ||||||||||||||||
| Brightness : | 70 cd/m² (Typ.) | ||||||||||||||||
| Contrast Ratio : | 150 : 1 (Min.) (Transmissive) | ||||||||||||||||
| Display Color : | 262K (6-bit) | ||||||||||||||||
| 20/30 (Typ.)(Tr/Td) | ||||||||||||||||
| Viewing Angle : | 45/45/10/30 (Min.)(CR≥10) (L/R/U/D) | ||||||||||||||||
| 6 o'clock | ||||||||||||||||
| White color Chromaticity : | Wx:0.288; Wy:0.321 | ||||||||||||||||
| 2.00 (Max.)(13 points) | ||||||||||||||||
| Sunlight Readable : | N | ||||||||||||||||
What is our advantage?
Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.
Delivery Quantity: 50-100 cartons shipped by DHL every week
Supply Ability: 100 pcs Panels per day.
Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)
Warranty: 12 months.
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Competitive price for different brands hard disk.
• Mass stock with the better price.
• Multiple options.
• Warranty service.
• Better team to provide the before-sales, on-sale and after-sale service
• Pls send us message if any hard disk needed.

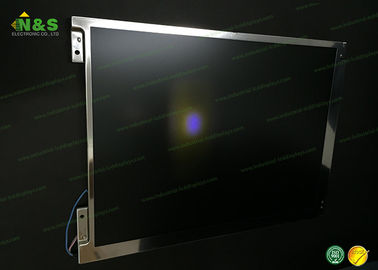

LT121S1-105W Picture
