Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 4.3 Inch |
|---|---|---|---|
| Resolution: | 480(RGB)×234 | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 94.32×52.65 Mm | Outline: | 105.33×65.63 Mm |
| High Light: | auo lcd screen,auo lcd display |
||

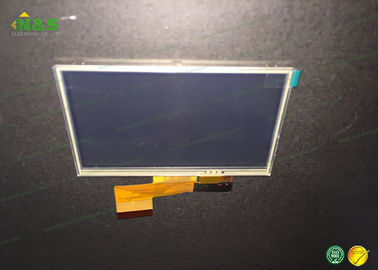

Normally White 4.3 inch C043GW01 V1 AUO LCD Panel with 94.8×52.65 mm Active Area
| Panel Size : | 4.3 inch |
| Dot Resolution : | 400(RGB)×234 |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 108 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.079×0.225 mm (H×V) |
| Pixel Pitch : | 0.237×0.225 mm (H×V) |
| Weight : | 58.8±5.9g |
| Active Area : | 94.8×52.65 mm (H×V) |
| Bezel Area : | 96.57×54.42 mm (H×V) |
| Outline Dimension : | 105.33×65.63 mm (H×V) |
| Outline Depth : | 5.53 (Typ.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 600 cd/m² (Typ.) |
| Contrast Ratio : | 400 : 1 (Min.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Response Time : | 15/20 (Typ.)(Tr/Td) |
| Viewing Angle : | 60/60/40/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.310; Wy:0.330 |
| White Variation : | 1.43 (Max.)(9 points) |
| Sunlight Readable : | N |
What is Our Advantage?
1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.
2. We can provide the one-stop purchase service.
3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.
4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.
5. Fast delivery.
6. Reasonable price.
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| M238DAN01.3 CELL | AUO | 23.8" | 2560×1440 |
| B070AAN01.0 | AUO | 7.0" | 600×1024 |
| M238DAN01.1 CELL | AUO | 23.8" | 2560×1440 |
| M270DAN02.0 CELL | AUO | 27.0" | 2560×1440 |
| H598DAN03.0 | AUO | 6.0" | 1080×1920 |
| H546TAN02.3 | AUO | 5.5" | 720×1280 |
| G173HW01 V0 CELL | AUO | 17.3" | 1920×1080 |
| T320HVN05.A CELL | AUO | 31.5" | 1920×1080 |
