Product Details:
|
Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 24.0 Inch |
---|---|---|---|
Resolution: | 1920(RGB)×1200 , WUXGA | Display Mode: | S-IPS, Normally Black, Transmissive |
Active Area: | 518.4×324 Mm | Outline: | 546.4×353 Mm×48.9 Mm |
High Light: | lg display panel,lg lcd display |
24.0 inch LM240WU8-SLA3 LG LCD Pane LCM 1920×1200 350 1000:1 16.7M WLED LVDS
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
LM240WU8-SLA3 Detail
Panel Size : | 24.0 inch |
---|---|
Dot Resolution : | 1920(RGB)×1200 (WUXGA) |
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 94 PPI |
Aspect Ratio : | 16:10 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.090×0.270 mm (H×V) |
Pixel Pitch : | 0.270×0.270 mm (H×V) |
Weight : | 2.37/2.49Kgs (Typ./Max.) |
Surface : | Antiglare, Hard coating (3H) |
Active Area : | 518.4×324 mm (H×V) |
Bezel Area : | 522.4×328.0 mm (H×V) |
Outline Dimension : | 546.4×352 mm (H×V) |
Outline Depth : | 10.5/15.0 (Typ./Max.) mm |
Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
Landscape or Portrait : | Landscape type |
Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
Panel Model | Brand | Size | Resolution |
LC320DXY-SJA1 | LG Display | 31.5" | 1366×768 |
LC490EQY-SHM2 | LG Display | 49" | 3840×2160 |
LC490DUJ-SGE4 | LG Display | 49" | 1920×1080 |
LC490EGY-SHM2 | LG Display | 49" | 3840×2160 |
LC490EGY-SHF1 | LG Display | 49" | 3840×2160 |
LC490EGJ-SHA1 | LG Display | 49" | 3840×2160 |
LC490EGY-SHA1 | LG Display | 49" | 3840×2160 |
LM238WF2-SJF1 | LG Display | 23.8" | 1920×1080 |
LC320DXY-SJA4 | LG Display | 31.5" | 1366×768 |
Display Mode : | e-IPS, Normally Black, Transmissive |
---|---|
Brightness : | 350 cd/m² (Typ.) |
Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) |
Display Color : | 16.7M (6-bit + Hi-FRC) |
Color Gamut : | 72% NTSC (CIE1931) |
Response Time : | 14 (Typ.)(G to G) |
Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
Viewing Direction : | Symmetry |
White color Chromaticity : | Wx:0.313; Wy:0.329 |
White Variation : | 1.33 (Max.)(9 points) |
Sunlight Readable : | N |
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.

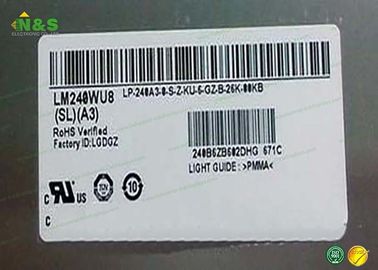

LM240WU8-SLA3 Picture
