Product Details:
|
| Panel Type :: | A-Si TFT-LCD , LCM | Surface :: | Antiglare (Haze 25%), Hard Coating (3H) |
|---|---|---|---|
| Display Colors :: | 16.7M (8-bit) , CIE1931 72% | Viewing Angle :: | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| High Light: | samsung lcd screen,samsung lcd display panel |
||

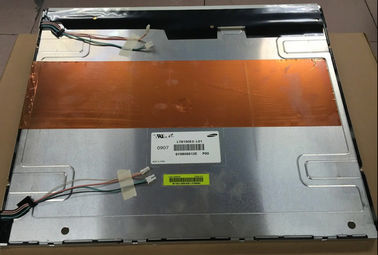

LTB190E3-L01 Samsung 19.0 inch LCM with 376.32×301.056 mm Active Area
LTB190E3-L01 Specification
| Panel Size : | 19.0 inch |
|---|---|
| Dot Resolution : | 1280(RGB)×1024 (SXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 86 PPI |
| Aspect Ratio : | 5:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.098×0.294 mm (H×V) |
| Pixel Pitch : | 0.294×0.294 mm (H×V) |
| Weight : | 2250g (Max.) |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : | 376.32×301.056 mm (H×V) |
| Bezel Area : | 380.2×305.0 mm (H×V) |
| Outline Dimension : | 396×324 mm (H×V) |
| Outline Depth : | 17.0 (Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
LTB190E3-L01 Specification
| Lamp Position : | Edge light type (Top and Bottom) | |||||
|---|---|---|---|---|---|---|
| Lamp Type : | CCFL | |||||
| Lamp Amount : | 4 pcs | |||||
| Lamp Shape : | Straight | |||||
| Lamp Life Time : | 50K(Min.) (Hours) | |||||
| Lamp Voltage : | 650V (Typ.) | |||||
| Lamp Current : | 3.0/7.5/8.0mA (Min./Typ./Max.) | |||||
| Lamp Operating Frequency : | 40/60KHz (Min./Max.) | |||||
| Lamp Startup Voltage : | 1450/1650V (Max.)(Ta=+25/0℃) | |||||
| Interface Type : | Connector | |||||
| Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHSR-02VS-1 | 3.5 mm | 2 pins | 4 pcs | BLL-2PINS-HL | |
