Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Surface: | Antiglare, Hard Coating (3H) |
|---|---|---|---|
| Resolution: | 1600(RGB)×1200 , UXGA | Display Colors: | 16.7M (6-bit + Hi-FRC) , CIE1931 72% |
| High Light: | auo display panel,auo lcd screen |
||
20.1 inch M201UN04 V0 AUO LCD Panel Hard coating for Desktop Monitor
M201UN04 V0 Detail
| Panel Brand : | AUO |
| Panel Model : | M201UN04 V0 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 20.1 inch |
| Resolution : | 1600(RGB)×1200 , UXGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 408×306 mm |
| Outline : | 432×331.5×25.5 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 800:1 (Typ.) |
| Display Colors : | 16.7M (6-bit + Hi-FRC) , CIE1931 72% |
| Response Time : | 4.5/1.5 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 4 pcs CCFL Without Driver |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
After-sale Services:
1)warranty for 1 year, 7 days return for the non-working items, except broken, crashed cargo (Buyer pay for return shipping fee).
2)Please make sure the item is compatible for your model before ordering. No return for incompatible issues.
3)When you receive the item,if you find the box is break and the goods break. Please take photo about the goods and refuse accepting the goods .Please contact me and sent photo of product to me as soon as possible .I will complaint the delivery company.
We ensure offer great products, services and the most favorable prices. And we have a long-term and reliable supply. If you have any questions, suggestions or need any assistance, we are always here to give you quick response.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| M350DVR01.1 CELL | AUO | 35.0" | 2560×1080 |
| T320HVN02.1 CELL | AUO | 31.5" | 1920×1080 |
| M270DAN01.1 CELL | AUO | 27.0" | 2560×1440 |
| T500QVN03.3 CELL | AUO | 50" | 3840×2160 |
| T500QVN03.0 CELL | AUO | 50" | 3840×2160 |
| H497DAN02.1 | AUO | 5.0" | 1080×1920 |
| H546DAN07.3 | AUO | 5.5" | 1080×1920 |
| M270HVN02.3 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.2 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.1 CELL | AUO | 27.0" | 1920×1080 |
| M270DTN01.0 CELL | AUO | 27.0" | 2560×1440 |
| T320HVN05.7 CELL | AUO | 31.5" | 1920×1080 |
| T320HVN05.4 CELL | AUO | 31.5" | 1920×1080 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
| Panel Size : | 20.1 inch |
| Dot Resolution : | 1600(RGB)×1200 (UXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 99 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.085×0.255 mm (H×V) |
| Pixel Pitch : | 0.255×0.255 mm (H×V) |
| Weight : | 3.30Kgs (Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 408×306 mm (H×V) |
| Bezel Area : | 413.0×311.0 mm (H×V) |
| Outline Dimension : | 432×331.5 mm (H×V) |
| Outline Depth : | 25.5 (Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
We can do for You:
1. Quality Guarantee:
100% original new Hard Disk for you.
2．Fast reply:
Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.
3．Delivery Guarantee:
Large Stock System, We have our own warehouses in Shenzhen and Hong Kong, with comprehensive supply lines.
4．After-Sale Service:
Professional support team to provide effective service, we are young and full of passion!
5. Professional acknowledgement of hard disks to provide customers with effective advice.
We have been in hard disk business for more than 6 years and know the main brands' hard disk very well.
6. Competitive quotation:
Our big customer network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.

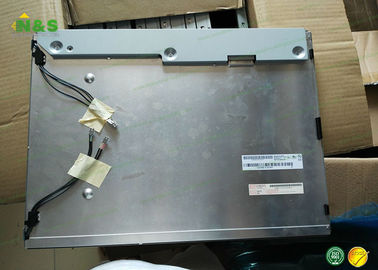

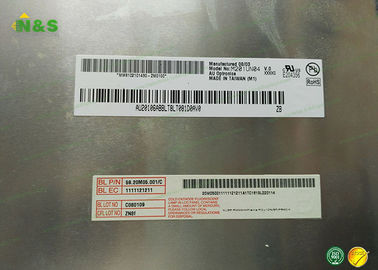

M201UN04 V0 AUO LCD Panel Picture
