Product Details:
|
| Product Number: | G190ETN01.2 | Brand: | AUO |
|---|---|---|---|
| Size Of Panel: | 19.0" | Resolution: | 1280×1024 |
| C/R: | 1000:1 | Backlight: | WLED |
| Brightness: | 350 | Interface: | LVDS |
| High Light: | auo lcd screen,auo lcd display |
||

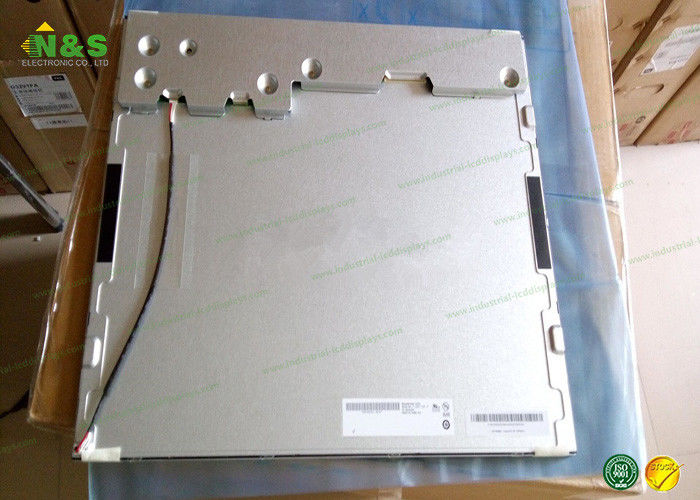

19inch 1280*1024 TFT LCD Panel G190ETN01.2 350cd/M2 AUO Display
| Panel Brand : | AUO |
|---|---|
| Panel Model : | G190ETN01.2 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Application : |
Mobile Machine |
| Operating Temperature : | -30 ~ 85 °C |
| Storage Temperature : | -30 ~ 85 °C |
| RoHS : | ROHS |
| Panel Size : | 19.0 inch |
|---|---|
| Dot Resolution : | 1280(RGB)×1024 (SXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 86 PPI |
| Aspect Ratio : | 5:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.098×0.294 mm (H×V) |
| Pixel Pitch : | 0.294×0.294 mm (H×V) |
| Weight : | 1.80Kgs (Typ.) |
Display Mode : TN, Normally White, Transmissive
Brightness : 350 cd/m² (Typ.)
Contrast Ratio : 1000 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (6-bit + Hi-FRC)
Color Gamut : 72% NTSC (CIE1931)
Response Time : 3/7 (Typ.)(Tr/Td)
Viewing Angle : 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D)
White color Chromaticity : Wx:0.313; Wy:0.329
1. Your reply will be replied within 24 hours.
2. Good service whenever.
3. OEM service
4. No MOQ request.
5. Quick delivery: 1-3 working days
6. Each LCD panel will be tested pcs by pcs by our professional testing team.
7. One Year warranty for our LCD Screen Displays.
1. Samples charge: According to the LCD panel model. Pls contact us to get details.
2. Samples time: 1-3 working days for stock models.
