Product Details:
|
| Product Number: | G156HTN02.1 | Brand: | AUO |
|---|---|---|---|
| Size Of Panel: | 15.6" | Resolution: | 1920×1080 |
| C/R: | 700:1 | Backlight: | WLED |
| High Light: | auo lcd screen,auo lcd display |
||

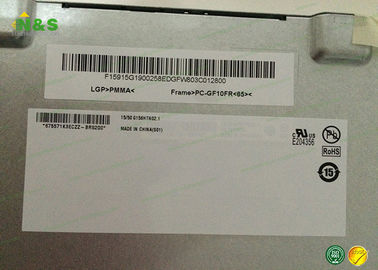

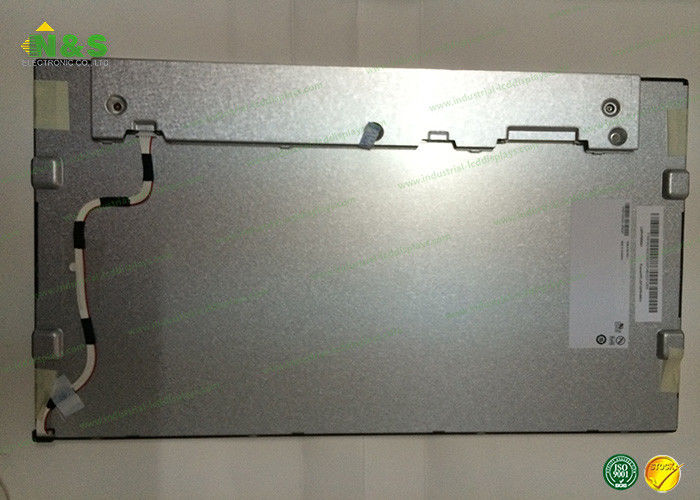

G156HTN02.1 15.6inch panel 1920×1080 high resolution AUO LCD Panel
Panel Brand : AUO
Panel Model : G156HTN02.1
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 15.6 inch
Resolution : 1920(RGB)×1080 , FHD
Display Mode : TN, Normally White, Transmissive
Active Area : 344.16×193.59 mm
Outline : 363.8×215.9×9.8 mm
Surface : Antiglare, Hard coating (3H)
Brightness :
Contrast Ratio : 700:1 (Typ.)
Display Colors : 16.7M (8-bit) , CIE1931 72%
Response Time : 8 (Typ.)(Tr+Td)
Viewing Angle : 80/80/70/70 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : WLED
Signal Interface : LVDS (2 ch, 8-bit) , 30 pins
Input Voltage : 3.3V (Typ.)
| Panel Brand : | AUO |
|---|---|
| Panel Model : | G156HTN02.1 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Application : |
Mobile Machine |
| Operating Temperature : | -10 ~ 70 °C |
| Storage Temperature : | -20 ~ 70 °C |
| RoHS : | ROHS |
| Specific Feature : |
NA |
