Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 10.2 Inch |
|---|---|---|---|
| Resolution: | 800(RGB)×480 , WVGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 222×133.2 Mm | Outline: | 235×145.9×6.1 Mm |
| High Light: | auo lcd screen,auo lcd display |
||

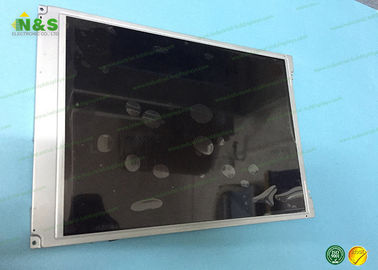

A102VW01 V4 AUO LCD Panel Normally White 10.2 inch LCM 800×480 400 for Automotive Display panel
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| T320HVN02.1 CELL | AUO | 31.5" | 1920×1080 |
| M270DAN01.1 CELL | AUO | 27.0" | 2560×1440 |
| T320HVN02.1 CELL | AUO | 31.5" | 1920×1080 |
| T500QVN03.0 CELL | AUO | 50" | 3840×2160 |
| H546DAN07.3 | AUO | 5.5" | 1080×1920 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
A102VW01 V4 Information
| Panel Size : | 10.2 inch |
| Dot Resolution : | 800(RGB)×480 (WVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 91 PPI |
| Aspect Ratio : | 15:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0925×0.2775 mm (H×V) |
| Pixel Pitch : | 0.2775×0.2775 mm (H×V) |
| Weight : | 335±10g |
| Surface : | Antiglare |
| Active Area : | 222×133.2 mm (H×V) |
| Bezel Area : | 224.9×136.11 mm (H×V) |
| Outline Dimension : | 235×145.9 mm (H×V) |
| Outline Depth : | 5.9±0.3 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 400 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 12/18 (Typ.)(Tr/Td) |
| Viewing Angle : | 65/65/45/65 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.290; Wy:0.320 |
| White Variation : | 1.25/1.43 (Typ./Max.)(9 points) |
| Sunlight Readable : | N |
