Product Details:
|
| Display Mode :: | TN, Normally White, Transmissive | Active Area :: | 360.94×109.98 Mm |
|---|---|---|---|
| Brightness :: | 400 Cd/m² (Typ.) | Display Colors :: | 262K (6-bit) |
| High Light: | industrial lcd screen,industrial lcd panel |
||

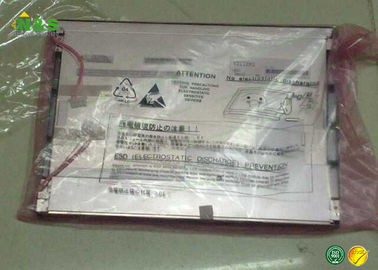

Normally White LTA149B780F TOSHIBA 14.9 inch 360.94×109.98 mm Active Area
LTA149B7 Specification
| Panel Size : | 14.9 inch |
|---|---|
| Dot Resolution : | 1280(RGB)×390 |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 90 PPI |
| Aspect Ratio : | >3:1 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.094×0.282 mm (H×V) |
| Pixel Pitch : | 0.282×0.282 mm (H×V) |
| Weight : | 890g (Typ.) |
| Surface : | Glare (Haze 0%) |
| Active Area : | 360.94×109.98 mm (H×V) |
| Outline Dimension : | 407.5×136 mm (H×V) |
| Outline Depth : | 14.0/20.5 (Typ./Max.) mm |
| Holes & Brackets : | Face mounting holes |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
LTA149B7 Specification
| Display Mode : | TN, Normally White, Transmissive |
|---|---|
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 10/20 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/45/75 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.310; Wy:0.330 |
| Sunlight Readable : | N |
LTA149B7 Specification
| Lamp Position : | Direct light type | |||||
|---|---|---|---|---|---|---|
| Lamp Type : | CCFL | |||||
| Lamp Amount : | 2 pcs | |||||
| Lamp Voltage : | 670V (Typ.) | |||||
| Lamp Current : | 4.5/6.0/7.0mA (Min./Typ./Max.) | |||||
| Lamp Startup Voltage : | 1900V (Min.) | |||||
| Interface Type : | Connector | |||||
| Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHR-03(4-3)VS-1N | 4.0 mm | 3 pins | 1 pcs | BLL-3PINS-HHL | |
| Lamp Driver Board : | No | |||||
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LTA070B510F | TOSHIBA | 7.0" | 800×480 |
| LTA070B052F | TOSHIBA | 7.0" | 800×480 |
| LT133EE09800 | TOSHIBA | 13.3" | 1366×768 |
| LTM024D78B | TOSHIBA | 2.4" | 240×320 |
| LTM035DD5Z | TOSHIBA | 3.5" | 320×480 |
| LT154DEZ1S00 | TOSHIBA | 15.4" | 1920×1200 |
