Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 24.0 Inch |
|---|---|---|---|
| Resolution: | 1920(RGB)×1200 , WUXGA | Display Mode: | S-IPS, Normally Black, Transmissive |
| Active Area: | 518.4×324 Mm | Outline: | 546.4×350 Mm |
| High Light: | lg display panel,lg replacement screen |
||
24.0 inch LM240WU2-SLB4 LG LCD Pane Normally Black for Desktop Monitor panel
LM240WU2-SLB4 Specification
| Panel Size : | 24.0 inch |
|---|---|
| Dot Resolution : | 1920(RGB)×1200 (WUXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 94 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.090×0.270 mm (H×V) |
| Pixel Pitch : | 0.270×0.270 mm (H×V) |
| Weight : | 2.65/2.80Kgs (Typ./Max.) |
| Surface : | Glare (Haze 0%), Hard coating (2H) |
| Active Area : | 518.4×324 mm (H×V) |
| Bezel Area : | 523.4×329.0 mm (H×V) |
| Outline Dimension : | 546.4×350 mm (H×V) |
| Outline Depth : | 28.9 (Typ.) mm |
| Holes & Brackets : | Side mounting holes |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Quality Control:
Make sure No damage, No Scratches, No dusty, No light leakage.
Make sure all functions are 100% tested ok
| Display Mode : | S-IPS, Normally Black, Transmissive |
|---|---|
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 800 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Color Gamut : | 72% NTSC (CIE1931) |
| Response Time : | 5.5/6.5 (Typ.)(Tr/Td) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.43 (Max.)(13 points) |
| Sunlight Readable : | N |
Excellent service on before-sale, on-sale and after-sale
1. We provide one year warranty, will provide the after-sale service for you if any quality problems.
2.Your inquiry related to our products or prices will be replied in 24 hours.
3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LH499WX1-SH01 | LG Display | 5.0" | 720×1280 |
| LM195WD1-TJBA | LG Display | 19.5" | 1600×900 |
| LH430WV6-SH01 | LG Display | 4.3" | 480×800 |
| LH500WX2-SH05 | LG Display | 5.0" | 720×1280 |
| LC430EGY-SHM1 | LG Display | 43" | 3840×2160 |
| LC600DUK-SGK1 | LG Display | 60" | 1920×1080 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

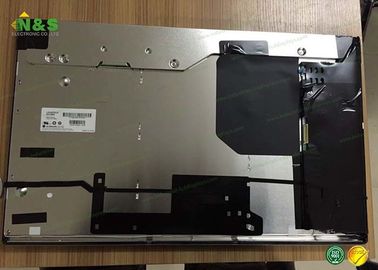

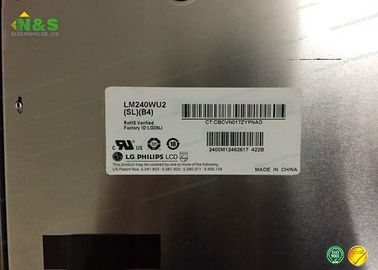

LM240WU2-SLB4 Picture
