Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 21.5 Inch |
|---|---|---|---|
| Resolution: | 1680(RGB)×1050 , WSXGA+ | Display Mode: | TN, Normally White, Transflective |
| Active Area: | 473.76×296.1 Mm | Outline: | 493.7×320.1×17 Mm |
| High Light: | lg display panel,lg replacement screen |
||
LM220WE4-SLB2 LG LCD Pane 22.0 inch with 473.76×296.1 mm Active Area
LM220WE4-SLB2 Detail
| Panel Size : | 22.0 inch |
|---|---|
| Dot Resolution : | 1680(RGB)×1050 (WSXGA+) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 90 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.094×0.282 mm (H×V) |
| Pixel Pitch : | 0.282×0.282 mm (H×V) |
| Weight : | 2.37/2.49Kgs (Typ./Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 473.76×296.1 mm (H×V) |
| Bezel Area : | 477.8×300.1 mm (H×V) |
| Outline Dimension : | 497.7×320.1 mm (H×V) |
| Outline Depth : | 35.7 (Typ.) mm |
| Holes & Brackets : | Side mounting holes (9-M3) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Competitive Advantage:
1. We are a leading vendor & distributor for the LCD panels for more than 6 years.
2. We got the ISO9001 quality management system certification.
3. We have our own sourcing line & agency for the hard-to-find & shortage LCD panel models.
4. We are the professional team for the LCD screen sourcing & international trade with 6-year experience.
5. Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 1-3 working days.
6. 1-year warranty is offered.
7. All LCD Panel will be tested before shipment.
8. We are the vendor & distributor in LCD panel area already for 6 years. We own our professional & competitive LCD screen sourcing line.
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LH500M01-SH02 | LG Display | 5.0" | 540×960 |
| LH500WX5-SH01 | LG Display | 5.0" | 720×1280 |
| LH500WX9-SH01 | LG Display | 5.0" | 720×1280 |
| LH550WX1-SH03 | LG Display | 5.5" | 720×1280 |
| LC550DUK-SGK2 | LG Display | 55" | 1920×1080 |
| LH400WV8-SH01 | LG Display | 4.0" | 480×800 |
| LH500WF3-SH01 | LG Display | 5.0" | 1080×1920 |
| LC550DPY-SHA1 | LG Display | 55" | 1920×1080 |
| LC420DUJ-FFE2 | LG Display | 42" | 1920×1080 |
| LH470WX3-SH05 | LG Display | 4.7" | 720×1280 |
| LC550DUY-SHA2 | LG Display | 55" | 1920×1080 |
| LC650EGY-SHM1 | LG Display | 65" | 3840×2160 |
| Display Mode : | IPS, Normally Black, Transmissive |
|---|---|
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Color Gamut : | 72% NTSC (CIE1931) |
| Response Time : | 6 (Typ.)(G to G) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.33 (Max.)(9 points) |
| Sunlight Readable : | N |

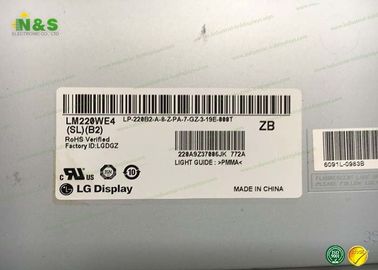

LM220WE4-SLB2 Picture
