Product Details:
|
| Input Voltage: | 5.0V (Typ.) | Response Time: | 3.6/1.4 (Typ.)(Tr/Td) |
|---|---|---|---|
| Viewing Angle: | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) | Brightness: | 300 Cd/m² (Typ.) |
| Contrast Ratio: | 1000:1 (Typ.) | Surface: | Antiglare, Hard Coating (3H) |
| Frequency: | 60Hz | Signal Interface: | LVDS (2 Ch, 8-bit) , 30 Pins |
| High Light: | auo lcd screen,auo lcd display |
||
20.1 inch M201EW02 VC AUO LCD Panel with 459.4×296.4×17.1 mm Outline for Desktop Monitor
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
M201EW02 VC AUO LCD Panel Detail
| Panel Brand : | AUO |
| Panel Model : | M201EW02 VC |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 20.1 inch |
| Resolution : | 1680(RGB)×1050 , WSXGA+ |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 433.44×270.9 mm |
| Outline : | 459.4×296.4×17.1 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 1000:1 (Typ.) |
| Display Colors : | 16.7M (6-bit + Hi-FRC) , CIE1931 92% |
| Response Time : | 3.6/1.4 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 4 pcs CCFL Without Driver |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
We can do for You:
1. Quality Guarantee:
100% original new Hard Disk for you.
2．Fast reply:
Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.
3．Delivery Guarantee:
Large Stock System, We have our own warehouses in Shenzhen and Hong Kong, with comprehensive supply lines.
4．After-Sale Service:
Professional support team to provide effective service, we are young and full of passion!
5. Professional acknowledgement of hard disks to provide customers with effective advice.
We have been in hard disk business for more than 6 years and know the main brands' hard disk very well.
6. Competitive quotation:
Our big customer network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.
| Panel Size : | 20.1 inch |
| Dot Resolution : | 1680(RGB)×1050 (WSXGA+) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 98 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.086×0.258 mm (H×V) |
| Pixel Pitch : | 0.258×0.258 mm (H×V) |
| Weight : | 2.01Kgs (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 433.44×270.9 mm (H×V) |
| Bezel Area : | 438.4×275.9 mm (H×V) |
| Outline Dimension : | 459.4×296.4 mm (H×V) |
| Outline Depth : | 17.1 (Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| M270HVN02.1 CELL | AUO | 27.0" | 1920×1080 |
| M270DTN01.0 CELL | AUO | 27.0" | 2560×1440 |
| T320HVN05.7 CELL | AUO | 31.5" | 1920×1080 |
| T320HVN05.4 CELL | AUO | 31.5" | 1920×1080 |
| T215HVN01.2 CELL | AUO | 21.5" | 1920×1080 |
| B070ATN02.0 CELL | AUO | 7.0" | 600×1024 |
| M238DAN01.3 CELL | AUO | 23.8" | 2560×1440 |
| B070AAN01.0 | AUO | 7.0" | 600×1024 |
| M238DAN01.1 CELL | AUO | 23.8" | 2560×1440 |
| M270DAN02.0 CELL | AUO | 27.0" | 2560×1440 |

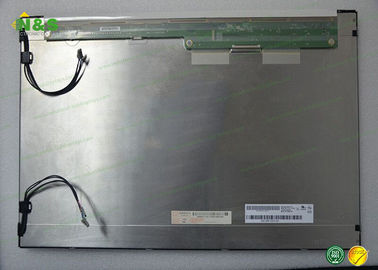

M201EW02 VC AUO LCD Panel Picture
