Product Details:
|
| Panel Type :: | LTPS TFT-LCD , LCM | Panel Size :: | 12.1 Inch |
|---|---|---|---|
| Active Area :: | 245.76×184.32 Mm | Outline :: | 278.3×209×12 Mm |
| High Light: | industrial touch screen display,industrial lcd screen |
||

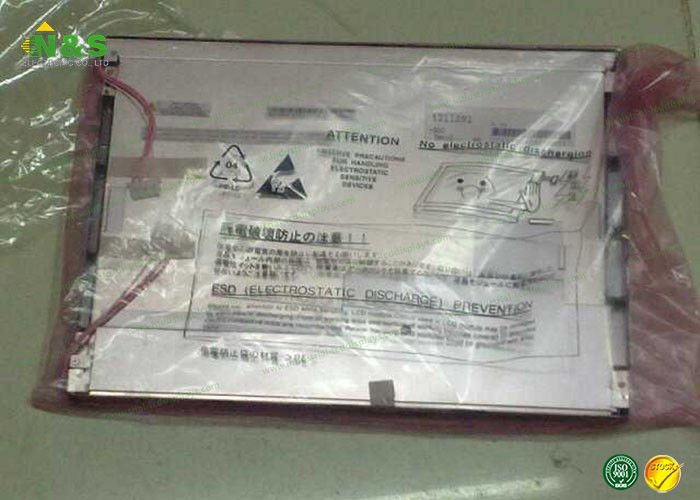

LTA121C250F TOSHIBA 12.1 inch for Industrial Application panel Normally White
LTA121C250F Specification
| Panel Size : | 12.1 inch |
|---|---|
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 105 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.080×0.240 mm (H×V) |
| Pixel Pitch : | 0.240×0.240 mm (H×V) |
| Weight : | 680g (Typ.) |
| Active Area : | 245.76×184.32 mm (H×V) |
| Bezel Area : | 246.76×185.32 mm (H×V) |
| Outline Dimension : | 278.3×209 mm (H×V) |
| Outline Depth : | 12.0 (Max.) mm |
| Holes & Brackets : | Face mounting holes (6-Φ3.4) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
LTA121C250F Specification
| Lamp Position : | Edge light type (Top side) | |||||
|---|---|---|---|---|---|---|
| Lamp Type : | CCFL | |||||
| Lamp Amount : | 2 pcs | |||||
| Lamp Shape : | Straight | |||||
| Lamp Life Time : | 60K(Typ.) (Hours) | |||||
| Lamp Replaceable : | Replaceable | |||||
| Lamp Voltage : | 580V (Typ.) | |||||
| Lamp Current : | 3.0/6.0/6.5mA (Min./Typ./Max.) | |||||
| Lamp Startup Voltage : | 1400V (Min.)(Ta=0℃) | |||||
| Interface Type : | Connector | |||||
| Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHR-04VS-1 | 4.0 mm | 4 pins | 1 pcs | BLL-4PINS-HHNL | |
| Lamp Driver Board : | No | |||||
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LTD111EWZX | TOSHIBA | 11.1" | 1366×768 |
| LTD121EDKP | TOSHIBA | 10.4" | 1024×768 |
| LTD089EXYM | TOSHIBA | 8.9" | 1280×768 |
| LT154DEZ5Z00 | TOSHIBA | 15.4" | 1920×1200 |
| LT154DEZ1S00 | TOSHIBA | 15.4" | 1920×1200 |
| LT145EE15000 | TOSHIBA | 14.5" | 1600×900 |
| LT141DENRP00 | TOSHIBA | 14.1" | 1400×1050 |
