Product Details:
|
| Response Time: | 3.4/1.6 (Typ.)(Tr/Td) | Outline: | 462.8×272 Mm |
|---|---|---|---|
| Active Area: | 442.8×249.075 Mm | Resolution: | 1600(RGB)×900 , HD+ |
| Brightness: | 200 Cd/m² (Typ.) | Viewing Angle: | 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D) |
| High Light: | auo display panel,auo lcd display |
||
20.0 inch M200RW01 V3 AUO LCD Panel Normally White with 442.8×249.075 mm Active Area
M200RW01 V3 Information
| Panel Brand : | AUO |
| Panel Model : | M200RW01 V3 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 20.0 inch |
| Resolution : | 1600(RGB)×900 , HD+ |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 442.8×249.075 mm |
| Outline : | 462.8×272 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 700:1 (Typ.) |
| Display Colors : | 16.7M (6-bit + Hi-FRC) , CIE1931 65% |
| Response Time : | 3.4/1.6 (Typ.)(Tr/Td) |
| Viewing Angle : | 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 2 pcs CCFL Without Driver |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
Our Services
Payment:
(1) Bank transfer , Western Union , T/T, Paypal are accepted.
(2) If any problem of payment, you can contact with us.
Shipment:
(1) Worldwide shipping. Any delivery way you want to choose, please contact us.
(2) All our LCD display will be shipped within1-3 days after confirmed full payment. Please inform us the price you want to mark on the invoice for the LCD screens.
(3) Please make sure your address is correct and deliverable by Express you choose. Your full name is recommended, especially Russian buyers.
(4) Delivery time is approximate:
------Via DHL, Fedex, UPS: 3-7working days
------Via EMS:7-15 working days
------Via Direct Express Line:1-3 working days.
| Panel Size : | 20.0 inch |
| Dot Resolution : | 1600(RGB)×900 (HD+) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 91 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.09225×0.27675 mm (H×V) |
| Pixel Pitch : | 0.27675×0.27675 mm (H×V) |
| Weight : | 1.80Kgs (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 442.8×249.075 mm (H×V) |
| Bezel Area : | 446.8×253.08 mm (H×V) |
| Outline Dimension : | 462.8×272 mm (H×V) |
| Outline Depth : | 11.0 (Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| BRAND | P/N | size | quantity |
| AUO | G057VTN01.0 | 5.7" | 50 |
| AUO | G057QN01 V2 | 5.7" | 60 |
| AUO | G065VN01 V2 | 6.5" | 110 |
| AUO | G084SN03 V1 | 8.4" | 500 |
| AUO | G084SN05 V7 | 8.4" | 100 |
| AUO | G085VW01 V0 | 8.5" | 66 |
| AUO | G104VN01 V1 | 10.4" | 81 |
| AUO | G104SN03 V5 | 10.4" | 130 |
| AUO | G104SN02 V2 | 10.4" | 200 |
| AUO | G104XVN01.0 | 10.4" | 140 |
| AUO | G121XN01 V0 | 12.1" | 100 |
| AUO | G121SN01 V3 | 12.1" | 240 |
| AUO | G150XG01 V1 | 15" |
320
|
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.

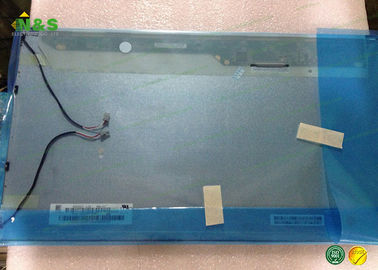

M200RW01 V3 AUO LCD Panel Picture
