Product Details:
|
Panel Brand :: | Toshiba Matsushita | Panel Model :: | LTA084C271F |
---|---|---|---|
Panel Type :: | LTPS TFT-LCD , LCM | Panel Size :: | 8.4 Inch |
Resolution :: | 800(RGB)×600 , SVGA | Display Mode :: | TN, Normally White, Transmissive |
High Light: | industrial touch screen display,industrial lcd panel |

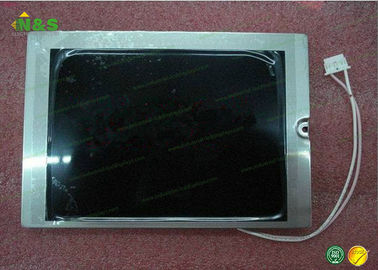

Normally White LTA084C271F TOSHIBA 8.4 inch with 800×600 400 370:1 262K WLED LVDS
LTA084C271F Specification
Panel Size : | 8.4 inch |
---|---|
Dot Resolution : | 800(RGB)×600 (SVGA) |
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 119 PPI |
Aspect Ratio : | 4:3 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.071×0.213 mm (H×V) |
Pixel Pitch : | 0.213×0.213 mm (H×V) |
Weight : | 385g (typ) |
Active Area : | 170.4×127.8 mm (H×V) |
Bezel Area : | 174.8×133.7 mm (H×V) |
Outline Dimension : | 199.5×149.5 mm (H×V) |
Outline Depth : | 12.0 (Max.) mm |
Holes & Brackets : | Face mounting holes (4-Φ3.4) |
Landscape or Portrait : | Landscape type |
Touch Panel : | Without |
LTA084C271F Specification
Display Mode : | TN, Normally White, Transmissive |
---|---|
Brightness : | 400 cd/m² (Typ.) |
Contrast Ratio : | 370 : 1 (Typ.) (Transmissive) |
Display Color : | 262K (6-bit) |
Response Time : | 8/17 (Typ.)(Tr/Td) |
Viewing Angle : | 60/60/50/50 (Typ.)(CR≥10) (L/R/U/D) |
Sunlight Readable : | N |
Here comes our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
LT084AC37300 | TOSHIBA | 8.4" | 1024×768 |
LT084AC37100 | TOSHIBA | 8.4" | 1024×768 |
LT084AC37000 | TOSHIBA | 8.4" | 1024×768 |
LT084AC27F00 | TOSHIBA | 8.4" | 800×600 |
LT084AC27E00 | TOSHIBA | 8.4" | 800×600 |
LT070AC46100 | TOSHIBA | 7.0" | 800×480 |
LT070AA32600 | TOSHIBA | 7.0" | 800×480 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
Our Service
1. Small quantity also can be provided.
2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. Warranty promise
5. Sourcing line for different hard disks for different brands.
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
LTA084C271F Specification
Signal Category : | LVDS | |||||
---|---|---|---|---|---|---|
Signal Class : | LVDS (1 ch, 6-bit) | |||||
Input Voltage for Panel : | 3.3V (Typ.) | |||||
Input Current for Panel : | 220mA (Typ.) | |||||
Interface Type : | Connector | |||||
Signal Interface : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
I-PEX | 20268-020E-03F | 1.0 mm | 20 pins | 1 pcs | LVDS-20P1C6B-100A |
