Product Details:
|
| Panel Size: | 17.0 Inch | Resolution: | 1280(RGB)×1024 , SXGA |
|---|---|---|---|
| Display Mode: | TN, Normally White, Transmissive | Signal Interface: | LVDS (2 Ch, 8-bit) , 30 Pins |
| High Light: | industrial lcd screen,industrial lcd panel |
||
|
17.0 inch | |
| Dot Resolution : | 1280(RGB)×1024 (SXGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 96 PPI | |
| Aspect Ratio : | 5:4 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.088×0.264 mm (H×V) | |
| Pixel Pitch : | 0.264×0.264 mm (H×V) | |
| Weight : |
|
|
| Surface : | Hard coating, Antireflection | |
| Active Area : | 337.92×270.336 mm (H×V) | |
| Bezel Area : | 341.6×274.0 mm (H×V) | |
| Outline Dimension : | 358.5×296.5 mm (H×V) | |
| Outline Depth : | 17.0±0.5 mm | |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
Packaging & Delivery
· Delivery Lead Time :2~3 weeks
· Minimum Order :1 pcs LCD Panel
· Supply Ability :100 PCS / Per Day
|
|
||
| Brightness : | 400 cd/m² (Typ.) | ||
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) | ||
| Display Color : | 16.2M (6-bit + FRC) | ||
| Color Gamut : | 72% NTSC (CIE1931) | ||
| Response Time : | 5/7 (Typ.)(Tr/Td) | ||
| Viewing Angle : | 70/70/65/65 (Typ.)(CR≥10) (L/R/U/D) | ||
| Viewing Direction : | 6 o'clock | ||
| White color Chromaticity : | Wx:0.313; Wy:0.329 | ||
| White Variation : |
|
||
| Sunlight Readable : | N |
Our service
1. Agent Brand:
* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;
2. Quality to be guaranteed:
* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;
* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.
* Products are sold to more than 20 countries.
* One year warranty .
6. The best TFT LCD solution:
*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.
To get the latest prices, pls feel free to contact us.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| CLAN070NQ06 | CPT | 7.0" | 1024×600 |
| CLAG050LD01 | CPT | 5.0" | 480×854 |
| CLAN060LB41 2XC | CPT | 6.0" | 540×960 |
| CLAD015GA01 CXA | CPT | 1.5" | 480×240 |
| CLAN101FP05 XG | CPT | 10.1" | 1920×1200 |
| CLAG101WH11 LXA | CPT | 10.1" | 1280×800 |
| CLAF055WB42 TXX | CPT | 5.5" | 720×1280 |

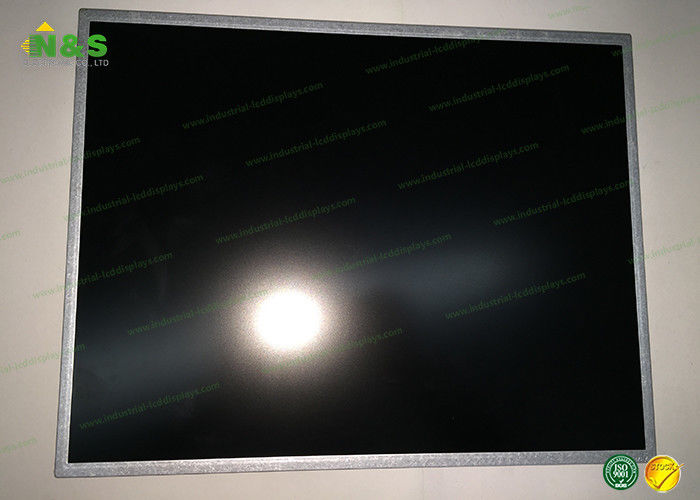

CLAA170EA09 Picture
