Product Details:
|
| Panel Size: | 5.7 Inch | Resolution: | 320(RGB)×240 , QVGA |
|---|---|---|---|
| Contrast Ratio: | 700:1 (Typ.) | Signal Interface: | CMOS (1 Ch, 6-bit) , 33 Pins |
| High Light: | auo display panel,auo lcd display |
||
| Panel Size : | 5.7 inch | |
| Dot Resolution : | 320(RGB)×240 (QVGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 70 PPI | |
| Aspect Ratio : | 4:3 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.120×0.360 mm (H×V) | |
| Pixel Pitch : | 0.360×0.360 mm (H×V) | |
| Weight : |
|
|
| Surface : | Antiglare, Hard coating (3H) | |
| Active Area : | 115.2×86.4 mm (H×V) | |
| Bezel Area : | 118.2×89.4 mm (H×V) | |
| Outline Dimension : | 144×104.6 mm (H×V) | |
| Outline Depth : | 12.3/12.8 (Typ./Max.) mm | |
| Holes & Brackets : | Rear mounting holes (4-Φ2.6) | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
| Display Mode : |
|
|
| Brightness : | 500 cd/m² (Typ.) | |
| Contrast Ratio : | 700 : 1 (Typ.) (Transmissive) | |
| Display Color : | 262K (6-bit) | |
| Color Gamut : | 50% NTSC (CIE1931) | |
| Response Time : | 15/10 (Typ.)(Tr/Td) | |
| Viewing Angle : | 80/80/70/70 (Typ.)(CR≥10) (L/R/U/D) | |
| Viewing Direction : | 12 o'clock | |
| White color Chromaticity : |
|
|
| White Variation : | 1.30 (Max.)(5 points) | |
| Sunlight Readable : | N |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| H546DAN07.3 | AUO | 5.5" | 1080×1920 |
| M270HVN02.3 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.2 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.1 CELL | AUO | 27.0" | 1920×1080 |
| M270DTN01.0 CELL | AUO | 27.0" | 2560×1440 |
| T320HVN05.7 CELL | AUO | 31.5" | 1920×1080 |
| T320HVN05.4 CELL | AUO | 31.5" | 1920×1080 |
| T215HVN01.2 CELL | AUO | 21.5" | 1920×1080 |
| B070ATN02.0 CELL | AUO | 7.0" | 600×1024 |
| M238DAN01.3 CELL | AUO | 23.8" | 2560×1440 |
| B070AAN01.0 | AUO | 7.0" | 600×1024 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Quality Control:
Make sure No damage, No Scratches, No dusty, No light leakage.
Make sure all functions are 100% tested ok

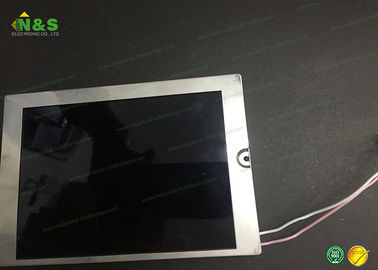

G057QTN01.0 Picture
