Product Details:
|
| Panel Size: | 20.1 Inch | Resolution: | 1680(RGB)×1050 , WSXGA+ |
|---|---|---|---|
| Contrast Ratio: | 1000:1 (Typ.) | Signal Interface: | LVDS (2 Ch, 8-bit) , 30 Pins |
| High Light: | auo lcd screen,auo lcd display |
||
| Panel Size : | 20.1 inch | |
| Dot Resolution : | 1680(RGB)×1050 (WSXGA+) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 98 PPI | |
| Aspect Ratio : | 16:10 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.086×0.258 mm (H×V) | |
| Pixel Pitch : | 0.258×0.258 mm (H×V) | |
| Weight : |
|
|
| Surface : | Glare (Haze 0%), Hard coating (3H) | |
| Active Area : | 433.44×270.9 mm (H×V) | |
| Bezel Area : | 437.8×275.3 mm (H×V) | |
| Outline Dimension : | 459.4×296.4 mm (H×V) | |
| Outline Depth : | 22.8±0.5 mm | |
| Holes & Brackets : | Side mounting holes (4-M3) | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
| Display Mode : |
|
|
| Brightness : | 300 cd/m² (Typ.) | |
| Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) | |
| Display Color : | 16.7M (8-bit) | |
| Color Gamut : | 72% NTSC (CIE1931) | |
| Response Time : | 11/5 (Typ.)(Tr/Td); 8 (Typ.)(G to G) | |
| Viewing Angle : | 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) | |
| Viewing Direction : | Symmetry | |
| White color Chromaticity : | Wx:0.313; Wy:0.329 | |
| White Variation : |
|
|
| Sunlight Readable : | N |
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| H020HD01 V0 | AUO | 2.0" | 176×220 |
| A020AE01 V0 | AUO | 2.0" | 172×72 |
| A060SE03 V0 | AUO | 6.0" | 600×800 |
| A060XE01 V1 | AUO | 6.0" | 768×1024 |
| A060SE02 V8 | AUO | 6.0" | 800×600 |
| A090XE02 V3 | AUO | 9.0" | 1024×768 |
| A060SE02 VC | AUO | 6.0" | 800×600 |
| A060SE02 V9 | AUO | 6.0" | 800×600 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

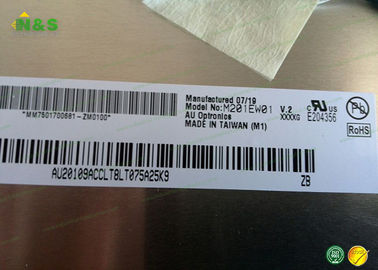

M201EW01 V2 Picture
