Product Details:
|
| Panel Size: | 8.4 Inch | Resolution: | 800(RGB)×600 , SVGA |
|---|---|---|---|
| Contrast Ratio: | 500:1 (Typ.) | Signal Interface: | LVDS (1 Ch, 6-bit) , 20 Pins |
| High Light: | auo lcd screen,auo lcd display |
||
| Panel Size : | 8.4 inch |
| Dot Resolution : | 800(RGB)×600 (SVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 119 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.071×0.213 mm (H×V) |
| Pixel Pitch : | 0.213×0.213 mm (H×V) |
| Weight : | 210±10g |
| Active Area : | 170.4×127.8 mm (H×V) |
| Bezel Area : | 173.8×131.2 mm (H×V) |
| Outline Dimension : | 198.2×143.6 mm (H×V) |
| Outline Depth : | 7.6 (Max.) mm |
| Holes & Brackets : | Face mounting holes (4-Φ3.0) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
|
| ||
| Brightness : | 200 cd/m² (Typ.) | ||
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) | ||
| Display Color : | 262K (6-bit) | ||
| Response Time : | 10/25 (Typ.)(Tr/Td) | ||
| Viewing Angle : | 65/65/65/45 (Typ.)(CR≥10) (L/R/U/D) | ||
| Viewing Direction : | 12 o'clock | ||
| White color Chromaticity : | Wx:0.310; Wy:0.330 | ||
| White Variation : |
| ||
| Sunlight Readable : | N |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| H020HD01 V0 | AUO | 2.0" | 176×220 |
| A020AE01 V0 | AUO | 2.0" | 172×72 |
| A060SE03 V0 | AUO | 6.0" | 600×800 |
| A060XE01 V1 | AUO | 6.0" | 768×1024 |
| A060SE02 V8 | AUO | 6.0" | 800×600 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.
Quality Control:
Make sure No damage, No Scratches, No dusty, No light leakage.
Make sure all functions are 100% tested ok

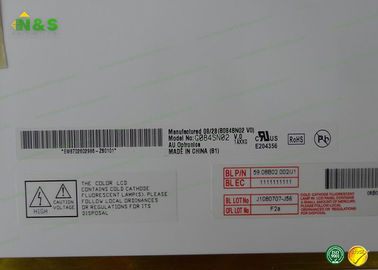

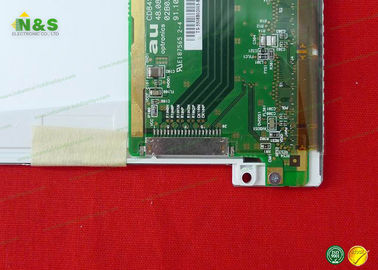

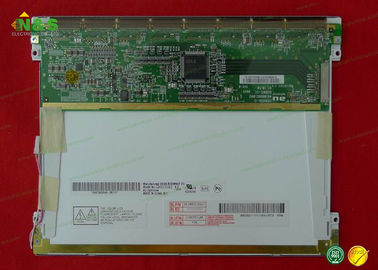

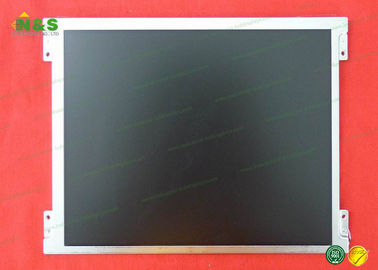

G084SN02 V0 Picture
