Product Details:
|
| Active Area: | 408.24×255.15 Mm | Outline: | 428×278×11.5 Mm |
|---|---|---|---|
| Surface: | Antiglare, Hard Coating (3H) | Contrast Ratio: | 700:1 (Typ.) |
| Viewing Angle: | 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D) | Signal Interface: | LVDS (2 Ch, 8-bit) , 30 Pins |
| High Light: | auo display panel,auo lcd screen |
||
M190PW01 V7 AUO LCD Panel Normally White with 428×278×11.5 mm Outline
M190PW01 V7 Specification
| Panel Brand : | AUO |
| Panel Model : | M190PW01 V7 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 19.0 inch |
| Resolution : | 1440(RGB)×900 , WXGA+ |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 408.24×255.15 mm |
| Outline : | 428×278×11.5 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 700:1 (Typ.) |
| Display Colors : | 16.7M (6-bit + Hi-FRC) , CIE1931 65% |
| Response Time : | 3.6/1.4 (Typ.)(Tr/Td) |
| Viewing Angle : | 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 2 pcs CCFL Without Driver |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
| Panel Size : | 19.0 inch |
| Dot Resolution : | 1440(RGB)×900 (WXGA+) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 89 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0945×0.2835 mm (H×V) |
| Pixel Pitch : | 0.2835×0.2835 mm (H×V) |
| Weight : | 1.70Kgs (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 408.24×255.15 mm (H×V) |
| Bezel Area : | 412.24×259.15 mm (H×V) |
| Outline Dimension : | 428×278 mm (H×V) |
| Outline Depth : | 11.5 (Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
What is our advantage?
Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.
Delivery Quantity: 50-100 cartons shipped by DHL every week
Supply Ability: 100 pcs Panels per day.
Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)
Warranty: 12 months.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| M270DAN01.1 CELL | AUO | 27.0" | 2560×1440 |
| T500QVN03.3 CELL | AUO | 50" | 3840×2160 |
| T500QVN03.0 CELL | AUO | 50" | 3840×2160 |
| H497DAN02.1 | AUO | 5.0" | 1080×1920 |
| H546DAN07.3 | AUO | 5.5" | 1080×1920 |
| M270HVN02.3 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.2 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.1 CELL | AUO | 27.0" | 1920×1080 |
| M270DTN01.0 CELL | AUO | 27.0" | 2560×1440 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

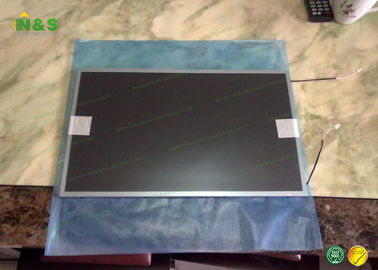

M190PW01 V7 AUO LCD Panel Picture
