Product Details:
|
| Resolution: | 1440(RGB)×900 , WXGA+ | Display Mode: | TN, Normally White, Transmissive |
|---|---|---|---|
| Surface: | Antiglare, Hard Coating (3H) | Active Area: | 408.24×255.15 Mm |
| Response Time: | 3.6/1.4 (Typ.)(Tr/Td) | Viewing Angle: | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| High Light: | auo display panel,auo lcd display |
||
19.0 inch M190PTN01.0 Hard coating AUO LCD Panel Normally White with 408.24×255.15 mm
M190PTN01.0 Information
| Panel Brand : | AUO |
| Panel Model : | M190PTN01.0 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 19.0 inch |
| Resolution : | 1440(RGB)×900 , WXGA+ |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 408.24×255.15 mm |
| Outline : | 428×278×10.8 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 1000:1 (Typ.) |
| Display Colors : | 16.7M (6-bit + Hi-FRC) , CIE1931 72% |
| Response Time : | 3.6/1.4 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 11S4P WLED Without Driver |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.
Excellent service on before-sale, on-sale and after-sale
1. We provide one year warranty, will provide the after-sale service for you if any quality problems.
2.Your inquiry related to our products or prices will be replied in 24 hours.
3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| T320HVN05.8 CELL | AUO | 31.5" | 1920×1080 |
| T500HVN07.5 CELL | AUO | 50" | 1920×1080 |
| B070EAN02.0 CELL | AUO | 7.0" | 800×1280 |
| M320QAN01.0 CELL | AUO | 32.0" | 3840×2160 |
| H546TAN02.0 | AUO | 5.5" | 720×1280 |
| H598TAN01.0 | AUO | 6.0" | 720×1280 |
| H546DAN03.3 | AUO | 5.5" | 1080×1920 |
| H497DAN02.0 | AUO | 5.0" | 1080×1920 |
| H495TAN01.1 | AUO | 5.0" | 720×1280 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
| Panel Size : | 19.0 inch |
| Dot Resolution : | 1440(RGB)×900 (WXGA+) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 89 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0945×0.2835 mm (H×V) |
| Pixel Pitch : | 0.2835×0.2835 mm (H×V) |
| Weight : | 1.52Kgs (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 408.24×255.15 mm (H×V) |
| Bezel Area : | 412.24×259.15 mm (H×V) |
| Outline Dimension : | 428×278 mm (H×V) |
| Outline Depth : | 7.7/10.8 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |

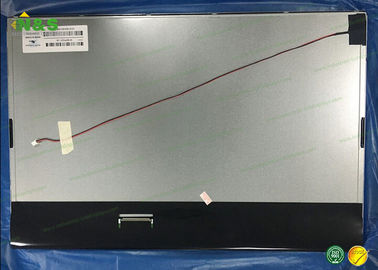

M190PTN01.0 AUO LCD Panel Picture
