Product Details:
|
| Brightness: | 400 Cd/m² (Typ.) | Contrast Ratio: | 550:1 (Typ.) |
|---|---|---|---|
| Display Colors: | 16.2M (6-bit + FRC) , CIE1931 72% | Response Time: | 5.6/2.4 (Typ.)(Tr/Td) |
| Viewing Angle: | 70/70/75/60 (Typ.)(CR≥10) (L/R/U/D) | Signal Interface: | LVDS (2 Ch, 8-bit) , 30 Pins |
| Panel Type: | A-Si TFT-LCD , LCM | Surface: | Glare (Haze 0%), Hard Coating (2H) |
| High Light: | auo display panel,auo lcd screen |
||
Flat Rectangle Display 19.0 inch M190EN04 V7 AUO LCD Panel with 376.32×301.056 mm
M190EN04 V7 Detail
| Panel Brand : | AUO |
| Panel Model : | M190EN04 V7 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 19.0 inch |
| Resolution : | 1280(RGB)×1024 , SXGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 376.32×301.056 mm |
| Outline : | 396×324×18 mm |
| Surface : | Glare (Haze 0%), Hard coating (2H) |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 550:1 (Typ.) |
| Display Colors : | 16.2M (6-bit + FRC) , CIE1931 72% |
| Response Time : | 5.6/2.4 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/75/60 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 4 pcs CCFL Without Driver |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
| Panel Size : | 19.0 inch |
| Dot Resolution : | 1280(RGB)×1024 (SXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 86 PPI |
| Aspect Ratio : | 5:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.098×0.294 mm (H×V) |
| Pixel Pitch : | 0.294×0.294 mm (H×V) |
| Weight : | 2.70Kgs (Typ.) |
| Surface : | Glare (Haze 0%), Hard coating (2H) |
| Active Area : | 376.32×301.056 mm (H×V) |
| Bezel Area : | 380.3×305.1 mm (H×V) |
| Outline Dimension : | 396×324 mm (H×V) |
| Outline Depth : | 14.33/18.0 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (8-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
FAQ:
1. Q: Are you a manufacturer or trading company?
A: We are a trading company who has been specializing in marketing LCD display for 6 years.
2. Q:What’s the quality of your products?
A: In visual inspection, we will make sure no damage, no scratches ,no dusty ,no flaws. And in function inspection, we make sure all functions are 100% tested ok.
3. Q: What is your after-sale service?
A: We offer 100% guarantee on our product. We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
4. Q: What is your MOQ?
A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.
5. Q: When will you make the delivery?
A: We can make the delivery for the LCD panels you want within 1-3 working days after receipt of payment.
6. Q: what brand of screen could we handle?
A: We can handle LCD panels for the below brand: Samsung, LG, AUO, Sharp, NEC, Hitachi industrial screen and more.
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| M238DAN01.1 CELL | AUO | 23.8" | 2560×1440 |
| M270DAN02.0 CELL | AUO | 27.0" | 2560×1440 |
| H598DAN03.0 | AUO | 6.0" | 1080×1920 |
| H546TAN02.3 | AUO | 5.5" | 720×1280 |
| G173HW01 V0 CELL | AUO | 17.3" | 1920×1080 |
| T320HVN05.A CELL | AUO | 31.5" | 1920×1080 |
| B080EAN04.1 CELL | AUO | 8.0" | 800×1280 |
| T500HVN08.8 CELL | AUO | 50" | 1920×1080 |
| H546DAN01.5 | AUO | 5.5" | 1080×1920 |
| H546DAN08.0 | AUO | 5.5" | 1080×1920 |

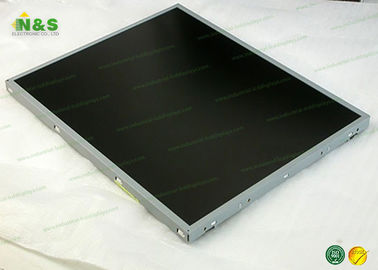

M190EN04 V7 AUO LCD Panel Picture
