Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Resolution: | 1280(RGB)×1024 , SXGA |
|---|---|---|---|
| Active Area: | 376.32×301.056 Mm | Brightness: | 250 Cd/m² (Typ.) |
| Signal Interface: | LVDS (2 Ch, 8-bit) , 30 Pins | Display Mode: | TN, Normally White, Transmissive |
| Viewing Angle: | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) | Frequency: | 60Hz |
| High Light: | auo lcd screen,auo lcd display |
||
Normally White M190EG02 V9 AUO LCD Panel 19.0 inch with 376.32×301.056 mm Active Area
M190EG02 V9 Detail
| Panel Brand : | AUO |
| Panel Model : | M190EG02 V9 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 19.0 inch |
| Resolution : | 1280(RGB)×1024 , SXGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 376.32×301.056 mm |
| Outline : | 396×324×11.4 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 1000:1 (Typ.) |
| Display Colors : | 16.7M (6-bit + Hi-FRC) |
| Response Time : | 3.6/1.4 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 13S4P WLED Without Driver |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange
professional sales team to follow up your case.
| Panel Size : | 19.0 inch |
| Dot Resolution : | 1280(RGB)×1024 (SXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 86 PPI |
| Aspect Ratio : | 5:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.098×0.294 mm (H×V) |
| Pixel Pitch : | 0.294×0.294 mm (H×V) |
| Weight : | 1.80Kgs (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 376.32×301.056 mm (H×V) |
| Bezel Area : | 380.0×305.08 mm (H×V) |
| Outline Dimension : | 396×324 mm (H×V) |
| Outline Depth : | 11.4 (Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| T500QVN03.3 CELL | AUO | 50" | 3840×2160 |
| T500QVN03.0 CELL | AUO | 50" | 3840×2160 |
| H497DAN02.1 | AUO | 5.0" | 1080×1920 |
| H546DAN07.3 | AUO | 5.5" | 1080×1920 |
| M270HVN02.3 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.2 CELL | AUO | 27.0" | 1920×1080 |
| M270HVN02.1 CELL | AUO | 27.0" | 1920×1080 |
| M270DTN01.0 CELL | AUO | 27.0" | 2560×1440 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

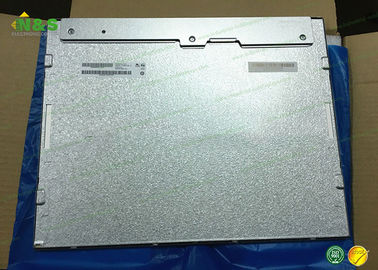

M190EG02 V9 AUO LCD Panel Picture
