Product Details:
|
| Panel Type :: | A-Si TFT-LCD , LCM | Panel Size :: | 6.5 Inch |
|---|---|---|---|
| Resolution :: | 640(RGB)×480 , VGA | Active Area :: | 132.48×99.36 Mm |
| Brightness :: | 550 Cd/m² (Typ.) | Contrast Ratio :: | 500:1 (Typ.) |
| High Light: | industrial touch screen display,industrial lcd screen |
||

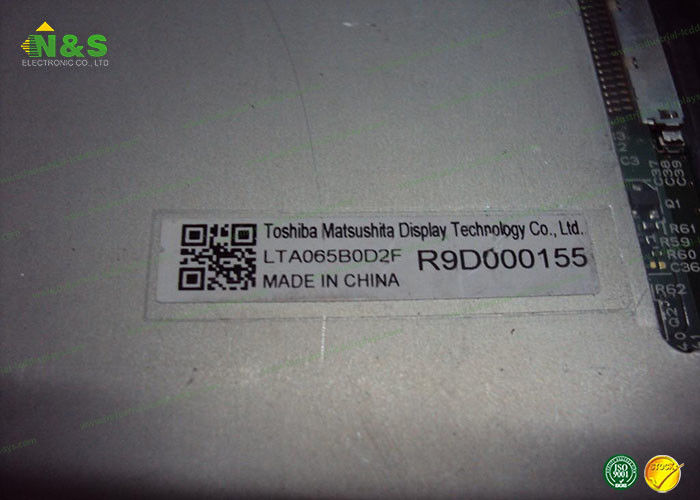

6.5 inch LTA065B0D2F TOSHIBA Normally White for Industrial Application panel
LTA065B0D2F Specification
| Panel Size : | 6.5 inch |
|---|---|
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 122 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.069×0.207 mm (H×V) |
| Pixel Pitch : | 0.207×0.207 mm (H×V) |
| Weight : | 250g (Typ.) |
| Active Area : | 132.48×99.36 mm (H×V) |
| Bezel Area : | 138.34×105.58 mm (H×V) |
| Outline Dimension : | 153×121 mm (H×V) |
| Outline Depth : | 10.9 (Typ.) mm |
| Holes & Brackets : | Side mounting holes (4-M2); Rear mounting holes (4-M2.5) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
LTA065B0D2F Specification
| Lamp Position : | Edge light type | |||||
|---|---|---|---|---|---|---|
| Lamp Type : | WLED | |||||
| Lamp Amount : | 2 strings | |||||
| Lamp Shape : | 2 strings | |||||
| Lamp Life Time : | 70K(Typ.) (Hours) | |||||
| Lamp Replaceable : | Replaceable | |||||
| Interface Type : | Connector | |||||
| Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| molex | 53261-0671 | 1.25 mm | 6 pins | 1 pcs | ||
| Lamp Driver Board : | Embedded (LED Driver) | |||||
| Lamp Driver Board : | 12.0V (Typ.) | |||||
| Lamp Driver Board : | 260mA (Typ.) | |||||
