Product Details:
|
| Display Mode :: | TN, Normally White, Transmissive | Active Area :: | 132.48×99.36 Mm |
|---|---|---|---|
| Outline :: | 153×118 Mm | Brightness :: | 400 Cd/m² (Typ.) |
| Contrast Ratio :: | 500:1 (Typ.) | Display Colors :: | 262K (6-bit) |
| High Light: | industrial touch screen display,industrial lcd screen |
||

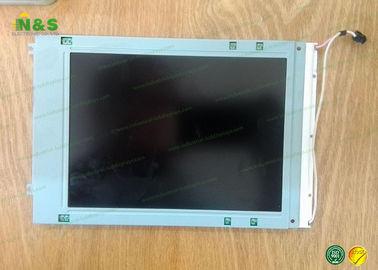

Normally White LTA065B0D0F TOSHIBA 6.5 inch with 132.48×99.36 mm
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Packaging & Shipping:
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate.
LTA065B0D0F Specification
| Panel Size : | 6.5 inch |
|---|---|
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 122 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.069×0.207 mm (H×V) |
| Pixel Pitch : | 0.207×0.207 mm (H×V) |
| Weight : | 250g (Typ.) |
| Active Area : | 132.48×99.36 mm (H×V) |
| Bezel Area : | 138.34×105.58 mm (H×V) |
| Outline Dimension : | 153×118 mm (H×V) |
| Outline Depth : | 11.0 (Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M2) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
LTA065B0D0F Specification
| Display Mode : | TN, Normally White, Transmissive |
|---|---|
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 15/25 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/XX/XX (Typ.)(CR≥10) (L/R/U/D) |
| Sunlight Readable : | N |
LTA065B0D0F Specification
| Lamp Position : | Edge light type (Top side) | |||||
|---|---|---|---|---|---|---|
| Lamp Type : | CCFL | |||||
| Lamp Amount : | 2 pcs | |||||
| Lamp Shape : | Straight | |||||
| Lamp Life Time : | 30K(Typ.) (Hours) | |||||
| Lamp Replaceable : | Replaceable | |||||
| Lamp Current : | 4.0/6.0/6.5mA (Min./Typ./Max.) | |||||
| Lamp Startup Voltage : | 1000V (Min.)(Ta=-10℃) | |||||
| Interface Type : | Connector | |||||
| Backlight Interface | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHR-03(4-3)VS-1N | 4.0 mm | 3 pins | 1 pcs | BLL-3PINS-HHL | |
| Lamp Driver Board : | No | |||||
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LTA070B0C1A | TOSHIBA | 7.0" | 480×234 |
| LTA070B070F | TOSHIBA | 7.0" | 800×480 |
| LTA070A251A | TOSHIBA | 7.0" | 480×234 |
| LTA040B470A | TOSHIBA | 4.0" | 480×234 |
| LT104AD18F00 | TOSHIBA | 10.4" | 800×600 |
| TFD60W12 | TOSHIBA | 6.0" | 320×234 |
| LTA149D680F | TOSHIBA | 14.9" | 1280×390 |
| LTA065B615A | TOSHIBA | 6.5" | 400×234 |
